FMC181-8-channel 125Msps 14bit DC coupling pulse acquisition AD FMC sub-card

Name: FMC181-8-channel 125Msps 14bit DC coupling pulse acquisition AD FMC sub-card
Brand: Orihard
SKU: 181
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 181

AD9253 of ADI is adopted as the ADC, with the highest sampling rate of 125M in four channels, two pieces in total, and eight input channels in board CARDS, supporting sampling of 80M/105M/125Msps,

INQUIRY PDF Format

Description

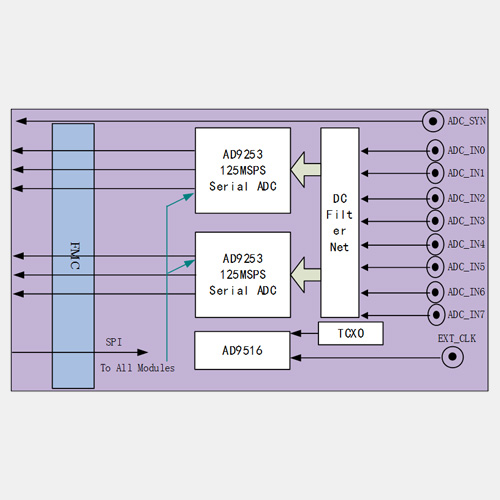

1.Overview
(1) AD9253 of ADI is adopted as the ADC, with the highest sampling rate of 125M in four channels, two pieces in total, and eight input channels in board CARDS, supporting sampling of 80M/105M/125Msps;
(2) AD analog input with front-end amplifier and filter circuit supports ±2Vpp input and DC coupling;
(3) The clock adopts AD9516, which supports on-board clock and external clock;The sampling rate can be freely configured;
(4)Ten SSMB interfaces, Eight analog inputs, One external clock, one synchronous signal, and one FMC/LPC interface.

2.Performance Indicators

The function of the board card	Parameters		Content
ADC	Chip type		AD9253
	Channel amount		Eight channel ADC，
	Sampling rate		125Msps
	Data bits		14bit
	Digital interface		DDR LVDS
	Analog interface		Dc coupling
	Analog input		±2V
	Input impedance		50Ω
	Analog standard
DAC	no
Clock	PLLchip		AD9516-1
	The on-board crystal		10MHz temperature-compensation crystal oscillator(TCXO) VCXO
	External input clock		Default 10MHz，3.3V LVTTLelectrical level
External trigger	Channel amount		One channel input
	electrical level		3.3V LVTTLelectrical level
Connector type	FMC-LPC		ASP_134604_01
	前面板		Ten channel SSMB
Standard	FMC ANSI/VITA 57.1 - 2008
Size	69X76.5mm
Weight	（within heat sink）
Power supply	+12V@1A
Power consumption	8W
Working temperature	Industrial -20℃ to +70℃
Support motherboard	Xilinx board	V6、V7、KU、VU、 ZYNQ、ZU development board
	Orihard board	136、270、367、288、330、274、3、9

3.Software content
Provide ISE or Vivado version of FMC interface AD input or DA output, clock configuration, external trigger access reference test program, supported FPGA model or board card see the instruction table.

4. Software application

The board is compatible with all kinds of sole-plates of the company, especially in support of DC coupling, mainly used for photoe.
