FMC167-4-way 250Ms ps AD 4-way 500M sps DA FMC daughter card

Name: FMC167-4-way 250Ms ps AD 4-way 500M sps DA FMC daughter card
Brand: Orihard
SKU: 167
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 167

FMC167 is a high-resolution, high-sampling-rate ADC+DAC FMC daughter board. It supports 4 16-bit 250MS/s A/D channel inputs and 4 16-bit 500MS/s D/A channel outputs.The board supports trigger input and trigger output;

INQUIRY PDF Format

Description

1. Board Overview

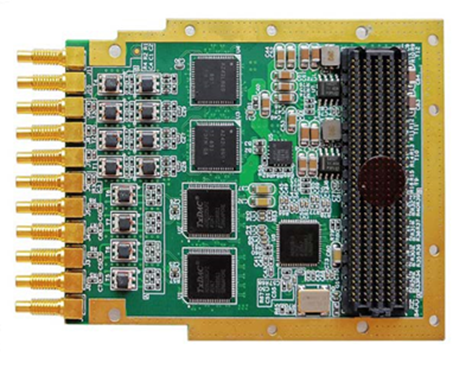

FMC167 is a high-resolution, high-sampling-rate ADC+DAC FMC daughter board. It supports 4 16-bit 250MS/s A/D channel inputs and 4 16-bit 500MS/s D/A channel outputs. The board supports trigger input and trigger output; three clock modes: internal reference, external reference, and external clock Multiple boards can be synchronized through the reference clock.
The electrical and mechanical design of the FMC167 board is based on the FMC standard (ANSI/VITA 57.1) and is connected to the FPGA carrier board through a high-density connector (HPC). Because the LPC-style FMC connector does not have the two BANKs HA and HB and the gigabit interface signal pin DP. If the carrier board is an LPC connector, it can only support the ADC function, not the DAC function. The front panel I/O is equipped with 11 SSMC coaxial connectors, 4 of which correspond to analog signal inputs 1-4; 4 correspond to analog signal outputs 1-4; one is an external clock input (CLK); one is a trigger signal input; one is a trigger signal output;

Block Diagram

Performance Indicators

Board Function	parameter	content
ADC	Chip Model	ADS42LB69
	Number of routes	4-channel ADC,
	Sampling rate	250Msps
	Data bits	16bit
	Digital Interface	LVDS
	Analog interface	AC coupling
	Analog Input	±1V
	Input Impedance	50Ω
	Simulation indicators
DAC	Chip Model	AD9122
	Number of routes	4-channel DAC,
	Conversion Rate	500Msps
	Data bits	16bit
	Digital Interface	LVDS
	Analog interface	AC coupling
	Analog Output	±1V
	Output Impedance	50Ω
	Simulation indicators
clock	PLL chip	AD9516-3
	Onboard crystal oscillator	10MHz Temperature Compensated Crystal Oscillator VCXO
	External input clock	Default 10MHz, 3.3V LVTTL level
External trigger	Number of routes	1 input, 1 output
	Level	3.3V LVTTL level
Connector Type	FMC-LPC	ASP_134604_01
	Front Panel	11-way SSMC
Board Standard	FMC ANSI/VITA 57.1 - 2008
Board size	69X76.5mm
Board weight	(including heat sink)
Board power supply	+12V@1A
Board power consumption	8W
Operating temperature	Commercial grade 0℃～ +70℃, industrial grade -40℃～ +85℃

3. Software Content
Provides reference test procedures for FMC interface AD input or DA output, clock configuration, and external trigger access in ISE or Vivado versions. See the table in the manual for supported FPGA models or boards.

4. Board Application
The board is configured with an FPGA motherboard for analog signal, radio, optoelectronic, and radar acquisition and output scenarios.
