1. Board Overview

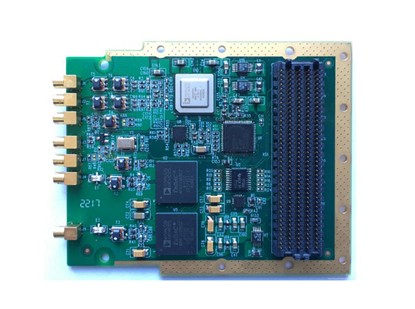

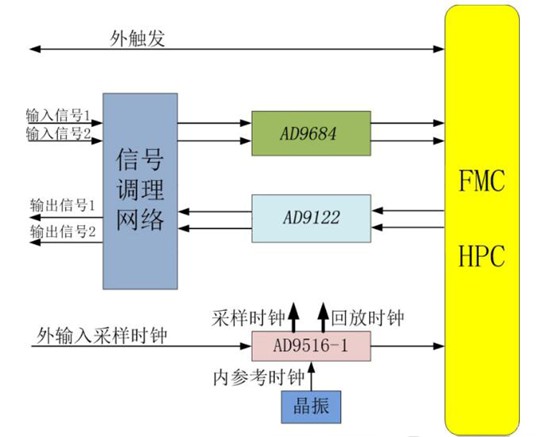

Two-channel 500Msps AD, two-channel 1.2Gsps DA FMC daughter card, realizes the synchronous acquisition function of two-channel 14-bit, 500Msps ADC, and realizes the synchronous playback function of two-channel 16bits, 1.2Gsps DAC. Complying with the VITA 57 standard, the board can be directly used with VME/VXS/AMC/VPX/PCIe FPGA carrier board . HDL firmware design for Xilinx FPGA is released synchronously with this board. The ADC device of the board adopts ADI's AD9684 chip, and the DAC device adopts ADI's AD9122. Users can configure the working status of the chip through the SPI interface. The ADC chip contains two channels of digital down converter (DDC), each DDC contains 4 cascaded signal processing stages: a 12-bit frequency converter (NCO) and three half-band extraction filters supporting 2, 4 and 8 divisions. The sampling clock can use an external input clock or be provided by the on-board clock chip. The board is mainly targeted at applications such as software radio, direct RF storage and broadband signal acquisition and playback.
2. Performance indicators
| Board Function |
parameter |
content |
| ADC |
Chip Model |
AD9684 |
| Number of routes |
2-way ADC, |
| Sampling rate |
250~500 Msps |
| Data bits |
14bit |
| Digital Interface |
DDR LVDS |
| Analog interface |
AC coupling |
| Analog Input |
±1V |
| Input Impedance |
50Ω |
| Simulation indicators |
|
| DAC |
Chip Model |
AD9122 |
| Number of routes |
2-channel DAC |
| Conversion Rate |
1.2Gsps |
| Data bits |
16 bits |
| Digital Interface |
DDR LVDS |
| Analog interface |
AC coupling |
| Analog Output |
±1V |
| Output Impedance |
50Ω |
| Simulation indicators |
Signal-to-noise ratio SNR: 69.327dBFS |
| clock |
PLL chip |
AD9516-1 |
| Onboard crystal oscillator |
10MHz Temperature Compensated Crystal Oscillator VCXO |
| External input clock |
Default 10MHz, 3.3V LVTTL level |
| External trigger |
Number of routes |
1 input |
| |
Level |
3.3V LVTTL level |
| Connector Type |
FMC-LPC |
ASP_134604_01 |
| |
Front Panel |
6-way SSMB |
| Board Standard |
Meeting VITA 57 |
| Board size |
69X76.5mm |
| Board weight |
(including heat sink) |
| Board power supply |
+12V@1A |
| Board power consumption |
5W |
| Operating temperature |
Commercial grade 0～50℃; Industrial grade -40～60℃; |
| Supported motherboards |
Xilinx board |
V6, V7, KU, VU, ZYNQ, ZU development boards |
| Orihard board |
136, 270, 367, 288, 330, 274, 3, 9 |
| |
|
|
|
|
|
