1. Overview

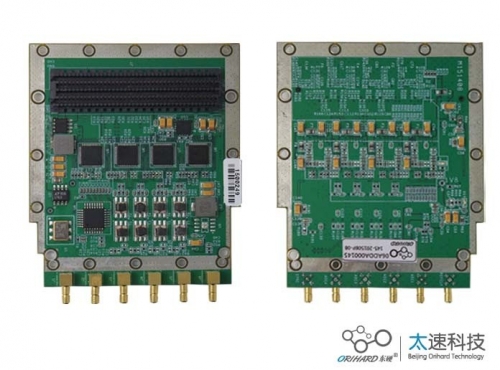

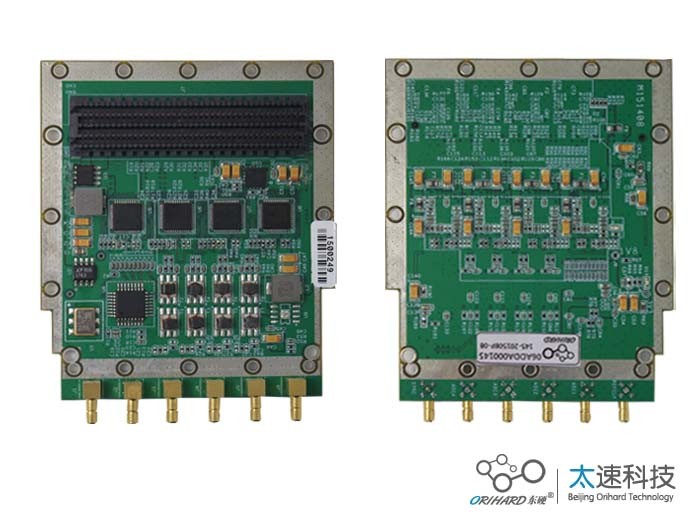

This board can realize 4-way 16bit 125Msps AD function and is a standard board designed for Xilinx development board. FMC connector is a high-speed multi-pin interconnect device, widely used in board docking equipment, especially in all development boards of Xilinx. The AD, DA daughter card module is a standard board designed specifically for Xilinx development board, used for analog signal, intermediate frequency signal acquisition, signal sending and other applications.
2. Performance indicators

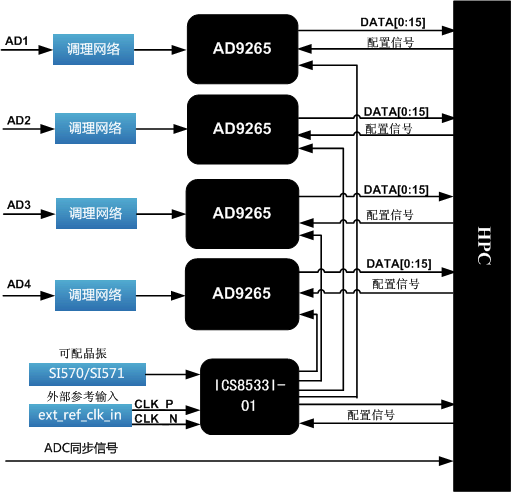

· FMC interface, supports 4-channel AD input.
· One SPI, used to configure the AD clock chip.
· Four-channel AD, AD uses AD9265 chip, which integrates two 16-bit high-speed ADCs, with a sampling rate of up to 125MSPS, an input signal of 50 ohm impedance, and a physical interface of SSMB.
· The clock is I2C programmable crystal oscillator, and the clock chip uses ICS8533.
· Supports external differential clock input and supplies it to the AD chip through the clock chip.
· Support external synchronization signal input.
· The size of the FMC card is 69mm x 90mm. The size of the mounting hole is 2.7mm.
3. Software Support
FPGA test example programs based on spartan6, Virtex5, and Virtex6 series.
4. Hardware test platform introduction
It can be used with the company's independent product No. 116, Xilinx ML605 development board, SP605 development board, KC705 development board, Avnet Spartan-6 LX150T development board, etc.
| |
Board Name |
Corresponding project name: |
Reference Image |
| 1 |
Our company's own product No. 116 |
|
Figure-Reference 1 |
| 2 |
Xilinx ML605 Development Board |
Orihard_TO_ML605.rar |
Figure-Reference 2 |
| 3 |
Xilinx SP605 Development Board |
sp605_fmc_adda-wxs.rar |
Figure-Reference 3 |
| 4 |
Xilinx KC705 Development Board |
KC705.rar |
Figure - Reference 4 |
| 5 |
Avnet Spartan-6 LX150T Development Board |
150T-spartan6_adda20130202.rar |
Figure-Ref. 5 |

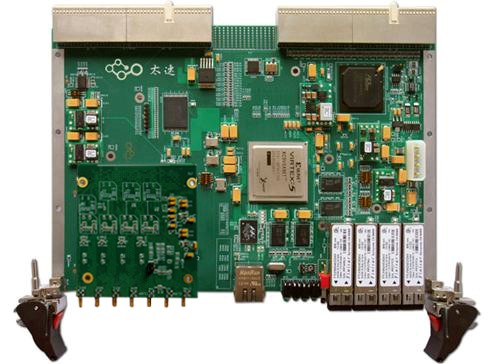

Figure-Reference 1 Used in combination with our company's own product No. 116

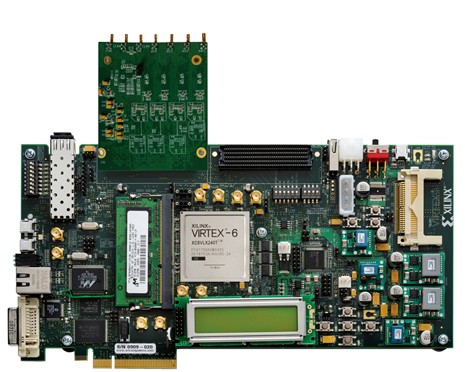

Figure 2: Used in combination with the development board Xilinx Virtex-6 FPGA ML605

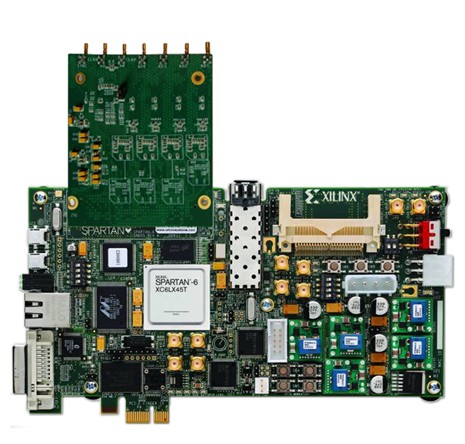

Figure 3: Used in combination with the development board Xilinx Spartan6 SP605
