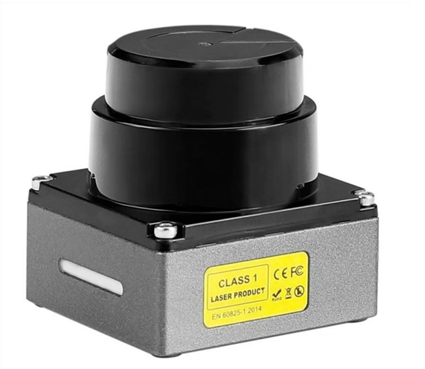

980-LiDAR sensor VF1-25

1.  Product Overview

The VF1-25 is a 2D planar scanning lidar that scans the surrounding area on a single plane with the help of an infrared invisible laser beam. The VF1-25 uses 2D polar coordinates to characterize its surroundings based on its measurement origin. The VF1-25 has a scanning angle range of 360°, which can detect and output the angle, distance, and signal strength information of the target, which is convenient for the SLAM system to better identify the target. This product meets the following specific requirements:
1) the detection capability of 2% black target reflectivity is greater than 5 meters;
2) IP67 waterproof capability;
3) Anti-sunlight interference ability≤80K Lux;
4) ESD level up to Level 4 (EN IEC 61000-4-2:2009) 8KV contact discharge; 15KV air discharge;
5) When used in environments below moderate rain, it still has the ability to detect;
6) High reliability industry standard connectors and splices.

2. Product Specifications:

Laser parameters
wavelength	nm	905±20
Laser safety rating		Class 1
Laser channel		1
Field of view (horizontal)	°	360
Frequency of scans	Hz	10, 15, 25
Angular resolution	°	0.25@10Hz, 0.5@15Hz, 1@25Hz
Spot divergence angle	mrad	4(H); 0.4(V)
Horizontal plane error	°	≤±0.8
Measurement parameters
Working distance (based on reflectivity)	2%	0.1~5m
	10%	0.1~10m
	80%	0.1~25m
	High anti	0.1~25m
Output distance resolution	mm	1
Repeatability	mm	≤20 (0.4~25m)
Absolute precision	mm	<±30 (0.4~25m)
Point cloud density	pts/s	14.4K@10Hz, 10.8K@15Hz, 9K@25Hz
Signal strength		0-20000
Software
Point cloud software		OleView
Electrical parameters
power consumption
Power connector		4 wire connector, M12X1 male, cable length 20cm, cable material TPU
Communication interface		100Mbps Ethernet, 4 core ribbon connector, M12X1 female, cable length 20cm, cable material TPU
Mechanical parameters
weight	g	＜500
Size(W*D*H)	mm	65*65*70
Certification and testing
Electromagnetic compatibility		IEC 61000-6-2:2016-08 / IEC 61000-6-3:2006-07
Vibration-resistant		IEC 60068-2-6:2007
Impact-resistant		IEC 60068-2-27:2008
Environmental adaptability
IP rating		IP67
Adapt to ambient light	Lux	≤80K
Operating temperature	℃	-10~+50
Storage temperature	℃	-20~+70

  VF1-25 is suitable for road environment perception in outdoor scenarios, meeting the needs of different industries such as robot navigation and obstacle avoidance, safety monitoring, industrial automation, and intelligent logistics.
