- Product Overview

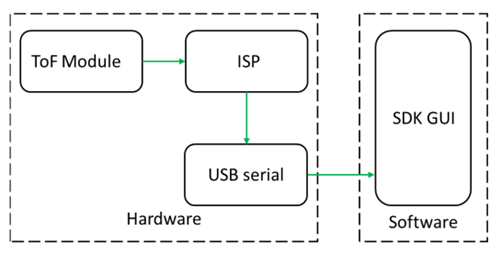

The CS20 is equipped with a ToF image sensor with a resolution of 640*480, which uses ToF technology to obtain three-dimensional information about objects and space, and has excellent performance such as long distance and low power consumption, providing users with convenient and efficient 3D perception capabilities. The product is powered and outputs phase information through the Type C interface, and users can obtain data such as depth and point cloud through the SDK.
- Product Features
• Millimeter-level measurement accuracy
• Typical measurement range: 0.1-5 m @ interior white wall
• Resolution: 640*480
• High dynamic measuring range
• Support depth and signal amplitude timing synchronization
• Adjustable range and frame rate
- Applicable scenarios
Robotic SLAM
Volumetric measurements
Liveness detection
Somatosensory interaction
3D modeling
Security surveillance/people counting
- Product Description:

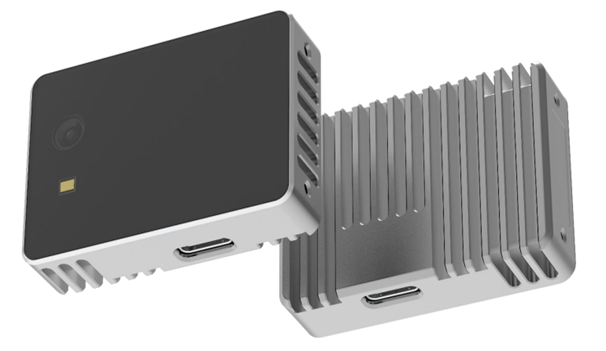

- Mechanical structure
