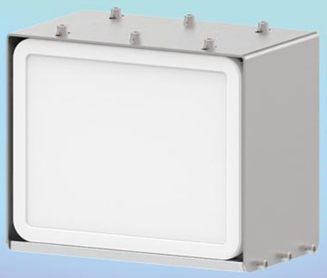

975 - Microwave Traffic Flow Detector

The TR Series Microwave Traffic Flow Detectors are high-performance millimeter-wave radar solutions designed for intelligent transportation systems. Operating at 80/92GHz frequencies, these devices deliver all-weather functionality unaffected by light, rain, snow, or fog.
Covering bidirectional 10-12 lane configurations with detection ranges up to 1,000 meters, the series precisely tracks vehicle location, speed, and type while simultaneously monitoring 512-1,024 targets. Models include TR8 and TR9 sub-categories with differentiated capabilities.

1. TR8-1 Microwave Traffic Flow Detector
   1.1Product Overview

TR8-1 microwave traffic flow detector is an 80GHz high-frequency and high-performance traffic millimeter wave radar for accurate perception of traffic status, which obtains physical information such as relative distance, speed, angle and direction of movement of road traffic vehicle targets through millimeter wave radar beams, classifies and tracks targets, and has all-weather all-weather global detection and multi-target continuous tracking capabilities, which is suitable for target detection in application scenarios such as urban expressways and intersections.
The TR8-1 microwave traffic flow detector has the characteristics of long detection distance, high real-time, high accuracy, low cost and high reliability, and cooperates with the edge intelligent computing perception engine to realize the deployment of radar and camera video laser vision fusion perception, and provides a comprehensive and accurate digital base for intelligent traffic management.

1.2 Features:

• Real-time output of target location, velocity, type, RCS and confidence level;
• It supports two-way 10-lane target trajectory tracking and monitoring, with a maximum detection distance of more than 350m, and can ensure the lane-level positioning accuracy within the full range, with the maximum
• 512 target tracks;
• It can set up multi-row virtual coils and support the output of multi-section lane statistics including: vehicle speed, traffic flow, front time distance, model classification, and road
• occupancy, static and dynamic queue length, etc.;
• Support the detection and reporti
• Not affected by abnormal weather such as light, dust, wind, frost, rain, snow and fog;
• Built-in independent anti-interference algorithm, with fault self-diagnosis, automatic calibration ability, NTP/PTP timing and other functions;
• It supports full-mounted and side-mounted, can be debugged and configured online, and is convenient and quick to maintain and upgrade.
  1.3 Technical Indicators

Metric items	Parameter value
Operating frequency range	79GHz~81GHz
Number of lanes covered	10 lanes
Detection range	≥350m
Speed range	±250km/h
Accuracy of velocity measurement	±0.1km/h
The maximum target is followed by the total number	512
Data update cycle	≤100ms
Installation height	6m~10m
Supply voltage	DC 24V
Power consumption of the whole machine	≤15W
Operating temperature	~40℃~+85℃
Communication interfaces	1000Mbps Ethernet, RS485
Ingress protection	IP67
size	258mm*208mm*49mm
weight	≤2.5kg



2. TR8-2 Microwave Traffic Flow Detector
3. 1 Product Overview

TR8-2 microwave traffic flow detector is an 80GHz high-frequency and high-performance traffic millimeter wave radar for accurate perception of traffic status, the longitudinal maximum detection distance can cover 1000m, to meet the two-way 12-lane large scene target detection, the radar can detect and track 1024 targets at the same time, real-time output of the location, speed and type of each target and other information. The radar has the functions of multi-target detection, vehicle type recognition, flow density and velocity statistics, and global event detection. Through multi-radar networking linkage, the same target can be continuously tracked and located, and the global ID can be unique.
The TR8-2 microwave traffic flow detector is suitable for application scenarios such as highway vehicle-road coordination, autonomous driving, green expressway, and smart highway management, enabling new infrastructure of smart expressway.


1. 2 Features

• The radar can output the position, speed, type and other information of each target in real time, and the accuracy of target trajectory tracking is ≥ 95%;
• The radar covers the functions of traditional microwave vehicle detectors, supports multi-row virtual coil settings, and regional statistics functions, which can provide statistical data including: vehicle speed, traffic flow, front time distance, model classification, road occupancy, etc., and has the function of vehicle queuing information statistics, with an accuracy rate of ≥ 95%;
• The radar has the function of multi-scene intelligent recognition, and the detection accuracy of traffic events such as abnormal parking, wrong-way driving, speeding, and congestion is ≥ 95%;
• Multi-radar networking linkage can continuously track and locate the same target, achieving unique global IDs, and the accuracy of unique IDs is ≥95%.
• The radar has built-in independent anti-jamming algorithms, and has the functions of fault self-diagnosis, self-calibration, and NTP/PTP timing. It supports online commissioning and calibration, which is easy to install and maintain.
  1. 3 Technical Indicators

Metric items	Parameter value
Operating frequency range	79GHz~81GHz
Number of lanes covered	12 lanes
Detection range	≥1000m
Speed range	±250km/h
Accuracy of velocity measurement	±0.1km/h
The maximum target is followed by the total number	1024
Data update cycle	≤100ms
Installation height	6m~10m
Supply voltage	DC 24V
Power consumption of the whole machine	≤25W
Operating temperature	~40℃~+85℃
Communication interfaces	1000Mbps Ethernet, RS485
Ingress protection	IP67
size	258mm*208mm*49mm
weight	≤2.5kg





3. TR9-1 Microwave Traffic Flow Detector
4. 1 Product Overview

TR9-1 microwave traffic flow detector is a 92GHz high-frequency and high-performance traffic millimeter-wave radar for accurate perception of traffic status, which obtains physical information such as the relative distance, speed, angle and direction of movement of road traffic vehicle targets through millimeter-wave radar beams, classifies and tracks targets, and has all-weather all-weather global detection and multi-target continuous tracking capabilities, which is suitable for target detection in application scenarios such as urban expressways and intersections.
The TR9-1 microwave traffic flow detector has the characteristics of long detection distance, high real-time, high accuracy, low cost and high reliability, and cooperates with the edge intelligent computing perception engine to realize the deployment of radar and camera video fusion perception, providing a comprehensive and accurate digital base for intelligent traffic management.

1. 2 Features

• Real-time output of target location, velocity, type, RCS and confidence level;
• It supports two-way 10-lane target trajectory tracking and monitoring, with a maximum detection distance of more than 350m, and can ensure lane-level positioning accuracy within the full range, with a maximum number of 512 target tracks;
• Multi-row virtual coils can be set up to support the output of multi-section lane statistics including: vehicle speed, traffic flow, front time distance, model classification, road occupancy, static and dynamic queue length, etc.;
• Support the detection and reporting of abnormal traffic events such as abnormal parking, wrong-way driving, slow driving, speeding, and congestion;
• Not affected by abnormal weather such as light, dust, wind, frost, rain, snow and fog;
• Built-in independent anti-interference algorithm, with fault self-diagnosis, automatic calibration ability, NTP/PTP timing and other functions;
• It supports full-mounted and side-mounted, can be debugged and configured online, and is convenient and quick to maintain and upgrade.
  1. 3 Tecnical Indicators

Metric items	Parameter value
Operating frequency range	92GHz~94GHz
Number of lanes covered	10 lanes
Detection range	≥350m
Positioning accuracy	±0.2m
Speed range	±250km/h
Accuracy of velocity measurement	±0.1km/h
The maximum target is followed by the total number	512
Data update cycle	≤100ms
Installation height	6m~10m
Operating temperature	~40℃~+85℃
Communication interfaces	1000Mbps Ethernet, RS485
Ingress protection	IP67
size	258mm*208mm*49mm
weight	≤2.5kg





4. TR9-2 Microwave Traffic Flow Detector
5. 1 Product Overview

TR9-2 microwave traffic flow detector is a 92GHz high-frequency and high-performance traffic state accurate perception of traffic millimeter wave radar, the longitudinal maximum detection distance can cover more than 500m, the lateral detection distance can cover 50m, can meet the two-way 12-lane large scene target detection, the radar can detect and track 512 targets at the same time, real-time output of the location, speed and type of each target and other information, near and far target positioning accuracy can reach 0.2m. The radar has the functions of multi-target detection recognition, flow density and velocity statistics, and global event detection. Through multi-radar networking linkage, the same target can be continuously tracked and located, and the global ID can be unique.
The TR9-2 microwave traffic flow detector is suitable for application scenarios such as highway vehicle-road coordination, autonomous driving, green highway, and smart highway management, enabling new smart highway infrastructure.


1. 2 Features

• The radar can output the position, speed, type and other information of each target in real time, and the accuracy of target trajectory tracking is ≥ 95%;
• The radar covers the functions of traditional microwave vehicle detectors, supports multi-row virtual coil settings, and regional statistics functions, which can provide statistical data including: vehicle speed, traffic flow, front time distance, model classification, road occupancy, etc., and has the function of vehicle queuing information statistics, with an accuracy rate of ≥ 95%;
• The radar has the function of multi-scene intelligent recognition, and the detection accuracy of traffic events such as abnormal parking, wrong-way driving, speeding, and congestion is ≥ 95%;
• Multi-radar networking linkage can continuously track and locate the same target, achieving unique global IDs, and the accuracy of unique IDs is ≥95%.
• The radar has built-in independent anti-jamming algorithms, and has the functions of fault self-diagnosis, self-calibration, and NTP/PTP timing. Support online commissioning and calibration, easy to install and maintain upgrades;
  1. 3 Technical Indicators

Metric items	Parameter value
Operating frequency range	92GHz~94GHz
Number of lanes covered	12 lanes
Detection range	≥500m
Positioning accuracy	±0.2m
Speed range	±250km/h
Accuracy of velocity measurement	±0.1km/h
The maximum target is followed by the total number	512
Data update cycle	≤100ms
Installation height	6m~10m
Operating temperature	~40℃~+85℃
Communication interfaces	1000Mbps Ethernet, RS485
Ingress protection	IP67
size	258mm*208mm*49mm
weight	≤3kg





5. TR9-3 Microwave Traffic Flow Detector
6. 1 Product Overview

TR9-3 microwave traffic flow detector is a 92GHz high-frequency high-performance traffic millimeter wave radar for accurate perception of traffic status, the longitudinal maximum detection distance can cover more than 1000m, and the lateral detection distance can cover 50m, which can meet the two-way 12-lane large scene target detection, the radar can detect and track 1024 targets at the same time, and output the location, speed and type of each target in real time, and the positioning accuracy of near and far targets can reach 0.2m. The radar has the functions of multi-target detection, vehicle type recognition, flow density and velocity statistics, and global event detection. Through multi-radar networking linkage, the same target can be continuously tracked and located, and the global ID can be unique.
The TR9-3 microwave traffic flow detector is suitable for application scenarios such as highway vehicle-road coordination, autonomous driving, green expressway, and smart expressway management, enabling new infrastructure for smart expressway.

1.  Features

• The radar can output the position, speed, type and other information of each target in real time, and the accuracy of target trajectory tracking is ≥ 95%;
• The radar covers the functions of traditional microwave vehicle detectors, supports multi-row virtual coil settings, and regional statistics functions, which can provide statistical data including: vehicle speed, traffic flow, front time distance, model classification, road occupancy, etc., and has the function of vehicle queuing information statistics, with an accuracy rate of ≥ 95%;
• The radar has the function of multi-scene intelligent recognition, and the detection accuracy of traffic events such as abnormal parking, wrong-way driving, speeding, and congestion is ≥ 95%;
• Multi-radar networking linkage can continuously track and locate the same target, achieving unique global IDs, and the accuracy of unique IDs is ≥95%.
• The radar has built-in independent anti-jamming algorithms, and has the functions of fault self-diagnosis, self-calibration, and NTP/PTP timing. It supports online commissioning and calibration, which is easy to install and maintain.
  1. Technical Indicators

Metric items	Parameter value
Operating frequency range	92GHz~94GHz
Number of lanes covered	12 lanes
Detection range	≥1000m
Positioning accuracy	±0.2m
Speed range	±250km/h
Accuracy of velocity measurement	±0.1km/h
The maximum target is followed by the total number	1024
Data update cycle	≤100ms
Installation height	6m~10m
Operating temperature	~40℃~+85℃
Communication interfaces	1000Mbps Ethernet, RS485
Ingress protection	IP67
size	258mm*208mm*49mm
weight	≤8.5kg

6. TR8-5 Point Cloud Microwave Traffic Flow Detector

6.1  Product Overview
TR8-5 point cloud microwave traffic flow detector is a high-performance traffic state accurate perception roadside sensor, the longitudinal detection distance can cover 600m, to meet the two-way 12-lane large scene target detection, the radar can detect and track 512 targets at the same time, real-time output of the location, speed and type of each target and other information, near and far target positioning accuracy can reach 0.2m. The radar has the functions of multi-target detection, vehicle type recognition, flow density and velocity statistics, and global event detection. Through multi-radar networking linkage, the same target can be continuously tracked and located, and the global ID can be unique.
The TR8-5 point cloud microwave traffic flow detector adopts a new high-resolution imaging perception radar front-end, which greatly improves the number and resolution of the collected point clouds, and the stability of the trajectory. It has the characteristics of low latency, high precision and high reliability.
The TR8-5 point cloud microwave traffic flow detector is suitable for application scenarios such as highway vehicle-road coordination, green expressway, and smart expressway management, enabling the new infrastructure of smart expressway.

6.2  Features:

• The radar can output the position, speed, type and other information of each target in real time, and the target trajectory tracking accuracy is ≥98%;
• The radar covers the traditional microwave vehicle detector function, supports multi-row virtual coil setting, regional statistics function, and can provide statistical data including: vehicle speed, traffic flow, front time distance, model classification, road occupancy, etc., and has the function of vehicle queuing information statistics, with an accuracy rate of ≥ 98%;
• The radar has a multi-scene intelligent recognition function, and the detection accuracy of traffic events such as abnormal parking, wrong-way driving, speeding, and congestion is ≥ 98%.
• Multi-radar networking linkage can continuously track and locate the same target, achieving unique global IDs, and the accuracy of unique IDs is ≥95%.
• The radar has built-in independent anti-jamming algorithms, and has the functions of fault self-diagnosis, self-calibration, and NTP/PTP timing. Support online commissioning and calibration, easy to install and maintain upgrades;
• High-density point cloud data output, up to 20,000 points per second, providing richer target information.

6.3  Technical Indicators

Metric items	Parameter value
Operating frequency range	79GHz~81GHz
Number of lanes covered	12 lanes
Detection range	≥600m
Speed range	±250km/h
Accuracy of velocity measurement	±0.1km/h
The maximum target is followed by the total number	512
Data update cycle	≤100ms
Data output	20,000 points/s
Installation height	6m~10m
Supply voltage	DC 24V
Power consumption of the whole machine	≤25W
Operating temperature	~40℃~+85℃
Communication interfaces	1000Mbps Ethernet, RS485
Ingress protection	IP67
size	258mm*208mm*49mm
weight	≤2.5kg
