972-FPGA medical electronic endoscopic solution

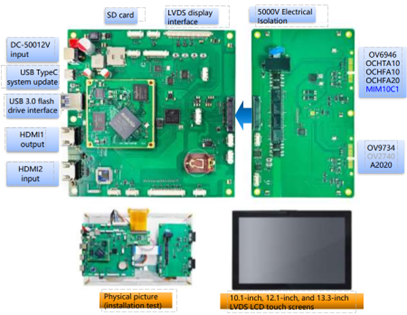

VEP-001A is a portable multi-function endoscopic decoder board designed for medical imaging equipment, equipped with Ellinx Titanium Ti60 FPGA and Rockchip RK3568 ARM dual-chip architecture to achieve efficient image processing and human-computer interaction functions, with professional-grade galvanic isolation, and meet medical safety registration requirements (5000V isolation).
1.2  Product configuration

parameter	description
Model	VEP-001A
function	Portable 12.1 inch multi-function endoscopic decoder board
FPGA	Elinx Titanium Ti60 FPGA Responsible for module access, ISP processing, and fast display
CPU	Rockchip Microelectronics:RK3568 ARM Responsible for coding and UI and other human-computer interactions, and expanding displays
Product Features:	Faster start-up: FPGA implements ISP and display Flexible access: A variety of endoscopic modules are accessed Algorithmic freedom: not limited by ASICs Lower power consumption: FPGA design is targeted

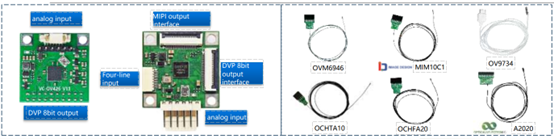

Mods are supported	mock	OV6946、OCHTA/FA10/FA20
	digit	OV9734、OV2740
	Domestic	MIM10C1,A2020
RK interface	HDMI1.4 output display interface USB3.0A port U disk storage USB TypeC OTG update Onboard SD card data storage User buttons and other IOs
FPGA interface	VDS touch screen display interface HDMI1.4 output display interface
Galvanic isolation	5000V galvanic isolation, support medical safety registration

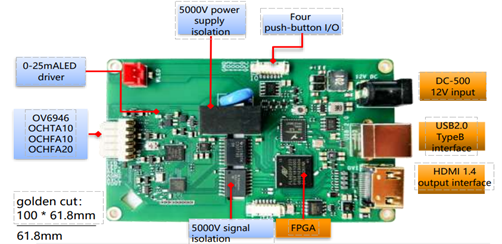

  VEP-002A is a high-performance FPGA endoscopic decoder board designed for medical imaging and industrial inspection equipment, integrating hardware acceleration, lossless transmission, and medical-grade security isolation technology, providing an all-in-one solution to meet the core requirements of ultra-low latency and high-quality image processing.

parameter	description
Model	VEP-002A
function	Cassette FPGA endoscopic decoder board (all-in-one)
Product Features:	FPGA hardware acceleration, ultra-high performance + low latency Self-developed ISP, completely independent and controllable + future upgrades Lossless USB2.0, low latency + high quality Private USB driver, industrial customization, different HDMI direct display, fast preview, ultra-low latency On-board 5000V galvanic isolation to protect patients
Mods are supported	OV6946	400*400@30
	OCHTA10	400*400@30
	OCHFA10/20	720*720@30
	MIM10C1	400*400@30
USB2.0 interface	Lossless low-latency high-performance USB camera solution offer:SDK + Windows Demo
HDMI interface	Lossless, low-latency, high-performance direct display (1280*720)
Electronic isolation	5000V galvanic isolation, support medical safety registration
	4 users 10, can be entered as a keystroke

1) It solves the problems of large delay, poor quality and low frame rate of the existing USB UVC scheme
2) It solves the problem that the existing USB UVC solution cannot do 5000V electrical isolation
3) Solved the problem that the existing USB UVC scheme could not expand the HDMI display
4) It solves the customer's demand for high-quality images for the secondary development of host computer software
5) It solves the needs of the existing Chengdu Weiguang 1mm endoscopic module lossless USB+HDMI
3.1 Product Overview

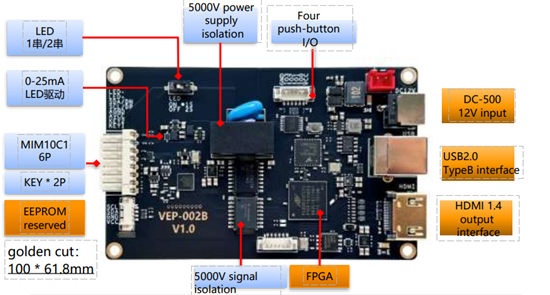

VEP-002B is a high-performance FPGA decoder board for medical endoscopic equipment and industrial inspection systems, which realizes ultra-low latency image processing and medical-grade security protection through FPGA hardware acceleration + deep customization design, and provides core embedded solutions for real-time high-definition image scenarios.
3.2 Product Configuration

parameter	description
Model	VEP-002B
function	Card FPGA endoscopic decoder board (Chengdu Shimmer)
Product Features:	FPGA hardware acceleration, ultra-high performance + low latency Self-developed ISP, completely independent and controllable + future upgrades Lossless USB2.0, low latency + high quality Private USB driver, industrial customization, different HDMI direct display, fast preview, ultra-low latency On-board 5000V galvanic isolation to protect patients
Mods are supported	MIM10C1	400*400@30
USB2.0 interface	Lossless low-latency high-performance USB camera solution SDK + Windows Demo
HDMI interface	Lossless, low-latency, high-performance direct display (1280*720)
Electronic isolation	5000V galvanic isolation, support medical safety registration
	4 users 10, can be entered as a keystroke

3.3 Redefine the schema
1) It solves the lossless USB+HDMI output function of the existing domestic Chengdu Shimmer 1mm endoscopic module
2) It solves the problems of large delay, poor quality and low frame rate of the existing USB UVC scheme
3) It solves the problem that the existing USB UVC scheme cannot do 5000V electrical isolation
4) Solved the problem that the existing USB UVC scheme could not expand the HDMI display
5) It solves the customer's demand for high-quality images for the secondary development of host computer software

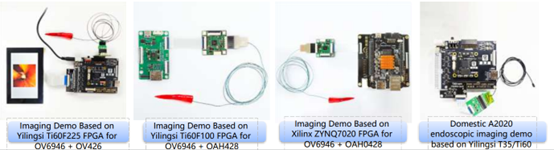

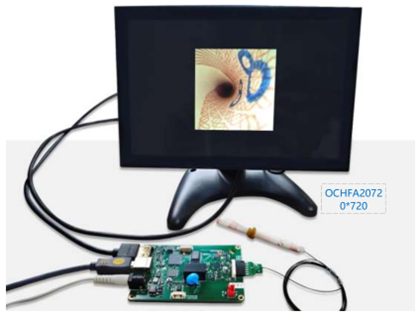

4. VEP-002A/B: Demonstration
