- Product Overview

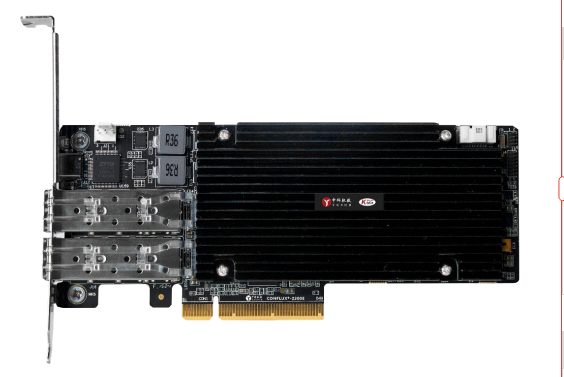

CONFLUX-2200E® is a smart NIC product based on the programmable network chip independent
[i]ly d
[ii]eveloped by Yushu, which supports hardware offloading and acceleration capabilities of network forwarding function, supports Openflow protocol and P416 programming language, and can be widely used in cloud computing, data center, finance, telecommunications, government and enterprises and many other fields.
- Hardware specifications
- Half-height half-length: 68.9mm x 166.5mm
- 100/40/25/10G interfaces
- PCIe 3.0 x16/8
- Power consumption: <=25W
- Passive cooling
- Performance Specifications:
- 40 Mpps in each direction of transmission and receiving
- 2 PF/510 VF
- Tens of millions of large-scale flow meters
- 1024 hardware queues
- Eco-compatibility
- Compatible with mainstream CPU architectures such as x86 and ARM
- Adapt to mainstream Linux systems at home and abroad
- OVS 2.17.2 And above version
- DPDK 21.11 And above version
- Product Advantages:
- SR-IOV virtualization is supported
- OVS network forwarding hardware offload
- Flexible network processor that supports L2-L7 packet parsing and processing
- Support P4 flexible programmability
- Application scenarios
- Cloud computing virtualization scenarios
- High-bandwidth, large-table data center scenarios
- Application scenarios with high throughput and high reliability requirements
- Product Certification
- FCC
- THAT
- RoHS
- REACH
- C-tick
- Features & Specifications
| Network interfaces |
2x100G/25G ，
1x100G/25G
|
| Host interface |
PCIe 3.0 ×16或PCIe 3.0×8,
MSI-X is supported |
| Network acceleration |
TCP Segmentation Offload (TSO)，
UDP Fragmentation Offload (UFO),
TCP/UDP Checksum Offload，
Generic Receive Offload(GRO)，
Generic Segmentation Offload(GSO)，
Receive Side Scaling(RSS)，
Bonding，VEB，MTU，
Multicast, DMA multi-queue, DPDK,
Support Jumbo (9600 bytes) |
|
Virtualization
|
Network isolation and address multiplexing of SR-IOV |
| Management & Control |
NIC O&M statistics
Analysis of local packet capture of NICs
SMBUS,PXE,ethtool |
| Standard support |
IEEE 802.3ae，
IEEE 802.3by,
IEEE 802.3ba，
IEEE 802.3ad link aggregation，
IEEE 802.1Q，802.1P VLAN tags and priority，
IEEE 1588v2 |
| Clock synchronization |
Supports 1588 V2 hardware time synchronization |
| CPU adaptation |
Haiguang, Kunpeng, Feiteng, Loongson,
Intel
|
| Operating system support |
Kirin, Euler, Tongxin,
RHEL、Ubuntu、CentOS、SUSE
|
| Product Certification |
FCC (Federal Communications Commission Certified),
CE (EU Harmonized Safety Certification),
RoHS（Compliance with EU directives 2011/65/ EU），
REACH (European Union Electronic Hazardous Substances Monitoring)，
C-tick（Australian EMC certification program）
|
