934-1GSPS digitizer-PCIe-X1073
1GSPS, 16-bit, 4-channel high-speed digitizer
1. Board overview
PCIe-X1073 is a high-speed digitizer independently developed by Hefei Zhongke Image Technology Co., Ltd., which supports 1GSPS sampling rate, 16-bit resolution, high-speed and large-capacity data buffering and high-speed data exchange technology, suitable for accurate capture of high-speed and transient signals, and can be used to build a multi-channel, high-precision, synchronous acquisition system.
2. Functional characteristics
● High-speed, high-accuracy: 1 GSPS, 16-bit
● Number of channels: 4 channels
● Synchronization: Multi-channel synchronous acquisition, synchronization accuracy up to 10ps (RMS).
● Multi-range: Support 1Vpp/2Vpp 2 input ranges
Easy integration: Open FPGA, support user-defined algorithms
● Analog input bandwidth: up to 200MHz
● DC-coupled, 50Ω input impedance
● 4GB DDR4 cache
● 1 external trigger interface
● 1 external clock interface
● Available for Windows and Linux systems

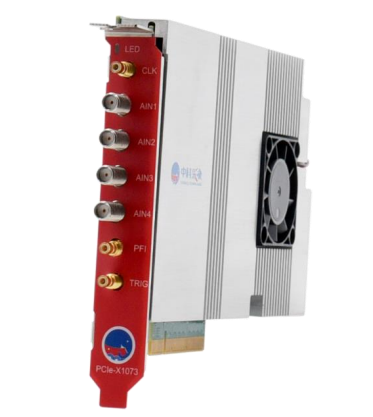

3. I/O interface definition

number	project	description
1	CLK	External Reference Clock Input Interface (SMA)
2	AIN1	Acquisition Signal Input Interface (SMA)
3	AIN2	Acquisition Signal Input Interface (SMA)
4	AIN3	Acquisition Signal Input Interface (SMA)
5	AIN4	Acquisition Signal Input Interface (SMA)
6	PFI	Programmable Function Interface (SMB)
7	TRIG	Trigger signal Input Interface (SMB)

4. product specifications

Analog to digital conversion index
Project	Description
Sampling rate	1GSPS
Vertical resolution	16-bit
Number of channels	4 channels
Analog bandwidth	DC-200MHz
Coupling mode	DC coupling
Input impedance	50Ω
Input range	1Vpp/2Vpp
effectiveness	10.8-bit@10MHz
synchronism	＜10ps（RMS）

External clock
Project	Description
Input impedance	50Ω single-ended
Coupling mode	AC
Signal amplitude	0.35-2.4Vpp
Frequency stability	≤25ppm
Frequency range	10MHz/100MHz，Square wave/sine wave

External trigger
Project	Description
Input impedance	Analog trigger: 2000Ω PFI trigger: 1000Ω
Coupling mode	Analog trigger: DC PFI trigger: DC
Input range	Analog trigger: 0~+2V PFI trigger: 0~+3.3V
Over threshold voltage	Analog trigger: 0~+2V, adjustable PFI trigger: ≥+2V

Dynamic parameter test：AINI 50Ωinput impedance

Power demand
Project	Description
Input voltage	12V
Input current	2.2A
power	26.4W

Environmental adaptability
Project	Description
Operating temperature	-20~+50℃
Storage environment	-30~+70℃
Working humidity	10%~90%RH，non-condensing
Random vibration	5~500Hz，0.3grms

Size and weight
Project	Description
Size	PCIe 3U/1 slot 20mm×160mm×111mm（W×D×H）
weight	0.38kg

5. Application scenarios
High-speed transient signal recording
Wideband signal analysis
IF signal acquisition
Mass spectrometry
Nuclear and Particle Physics Experiments
LiDAR echo acquisition
Scientific research and military industry
6. Ordering Guide
PCIe-X1073
1GSPS、16-bit，4 channel
High-speed digitizer
