1. Product Overview

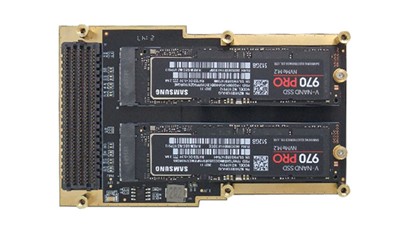

The 2-way M.2 SSD storage daughter card based on FMC is used for the expansion development of Xilinx FPGA baseboard. The 8-way GTX of FMC is expanded to 2-way PCIeX4, connecting the NVME solid-state drive of M.2. The FMC interface is a standard HPC interface that meets the VITA 57.1 standard. The connector model of FMC is: ASP-134488-01. The board is sold without a hard disk, which needs to be purchased by yourself.

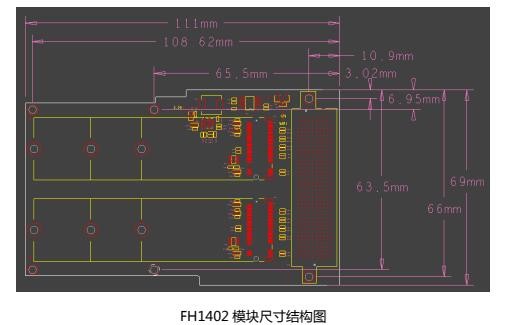

2. Module structure diagram

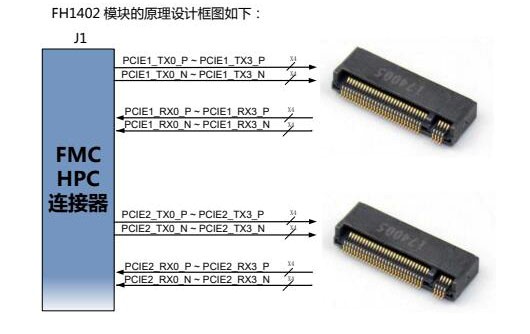

3. Module Function Description
The
daughter card has a 100MHz differential crystal oscillator, with two outputs from the same source, one for GTX through FMC, used as the input clock of PCIe root, and one for the solid-state drive. There are two sets of crystal oscillator circuits, one for each of the two storage circuits.

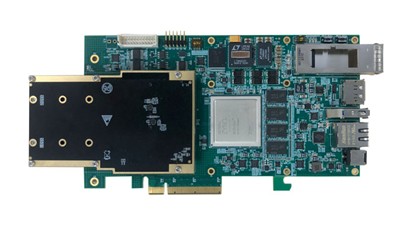

Board kit: Dual-channel M.2 high-speed storage development kit based on XCZU7EV
 |
|
