FMC636-Kintex XCKU060 High performance PCIe carrier based on FMC

Name: FMC636-Kintex XCKU060 High performance PCIe carrier based on FMC
Brand: Orihard
SKU: 636
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 636

Xilinx's Kintex UltraScale series FPGA XCKU060-2FFVA1156 is used as the main control chip of the board. Onboard two 64-bit DDR4 SDRAM units, each with a capacity of 2GB, can run stably at 2400MT/s. Supports PCIE Gen3 x8 mode and one FMC HPC port. At the s

INQUIRY PDF Format

Description

1. Overview of the board

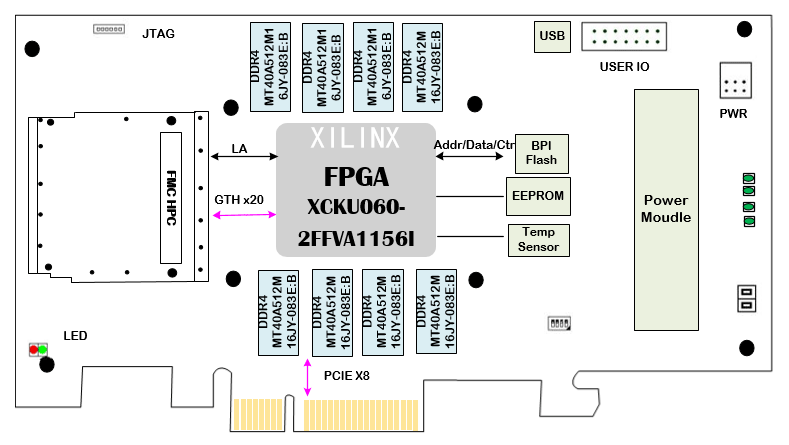

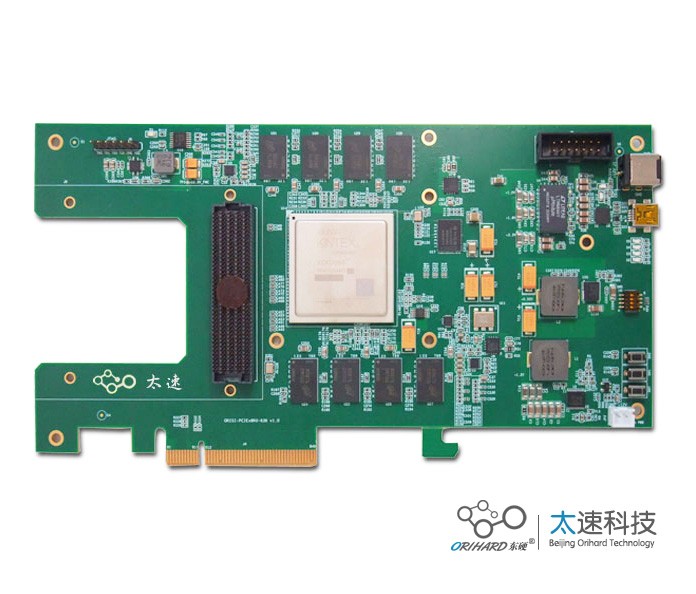

Xilinx's Kintex UltraScale series FPGA XCKU060-2FFVA1156 is used as the main control chip of the board. Onboard two 64-bit DDR4 SDRAM units, each with a capacity of 2GB, can run stably at 2400MT/s. Supports PCIE Gen3 x8 mode and one FMC HPC port. At the same time can provide Windows, Linux PC driver.

2. Main specifications
• Main onboard processor XCKU060-2FFVA1156I;
• two 64Bit DDR4 SDRAM units with capacity of 2GB each;
• FPGA is loaded in BPI mode
• FMC interface provides 20 pairs of GTH and LA signals (non-FMC + connector);
• Reserve JTAG and 12 expansion IO, LVTTL 3.3V level;
• supports data storage using EEPROM;
• Power timing control and total power consumption monitoring;
• Onboard temperature sensor;
• Supports Micro USB conversion serial port.
• Supports PCIe 3.0 X8 ports and high-speed data exchange with a PC.
• supports separate 12V power supply (detached from a PC).
• The standard PCIe full-height half-length is 167.5 mm x 111 mm.

3. product application
• AD acquisition board, AI accelerated computing, optical fiber expansion, image processing.
4. Software support
• Hardware, design tools, IP, and pre-validated reference designs;
• Demonstrate DDR IP software and PCIe XDMA transmission;
• FMC subcard demonstration program.
