一、Overview of the board

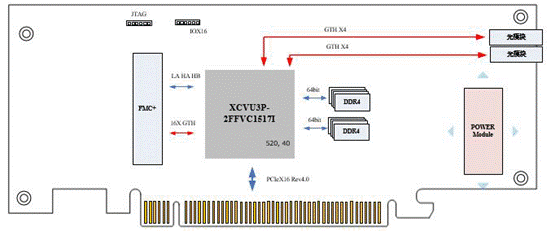

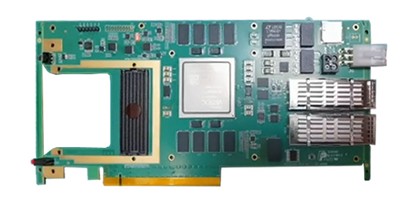

Xilinx UltraScale+16 nm VU3P chip (XCVU3P-2FFVC1517I) is used as the main control chip of the board. Two 64-bit on-board DDR4 SDRAM supports IOX16 or JTAG ports, PCIe X16 ReV3.0 and FMC+ expansion ports. The board provides a standard FMC+ interface, which complies with ANSI/VITA 57.4 standard, and can flexibly select FMC+ or FMC sub-cards according to application requirements, such as ADC sub-cards, DAC sub-cards, and optical fiber sub-cards. At the same time, it supports Windows and Linux host computer drivers.
二、Main specifications
● Multiple compatible FPGA chips can be flexibly according to needs;
● Reserve JTAG and test interface;
Extended I/O, an FMC+ expansion connector that provides 16 GTX, and LA, HA, HB signals;
● One PCIe X 16
● 2 sets of 64Bit DDR4 SDRAM, each set capacity 4GB;
● Support the use of SPI X4 mode configuration program;
● Support data storage using SPI X4 mode;
● Support the use of EEPROM data storage;
● Power timing control and total power consumption monitoring;
● Onboard temperature sensor;
● Support IOX16, LVTTL 1.8V;
● Support JTAG debugging interface;
● Support separate 12V power supply (separate from PC)
● Standard PCIe full height half length 167.5 *130 mm
三、product application
● Software Radio
● FPGA signal processing
● Radar image processing
● Satellite communication system
● Graphics and image hardware accelerator
● Baseband communication reception
● Driver assistance
● Factory automation and other high-end embedded application development platform
四、 Software support
● Hardware, design tools, IP, and pre-validated reference designs;
● Demonstration of DDR IP software, PCIe XDMA transmission, fiber optic ibert test;
Provides an embedded C/C++ application development experience, including the Eclipse IDE and a complete design environment, while integrating the Vivado design environment.
● FMC+ can be plugged into a variety of VITIA57 standard high-speed ADC, DAC and other sub-cards;
● Can provide FMC+ or FMC subcard demo program.
