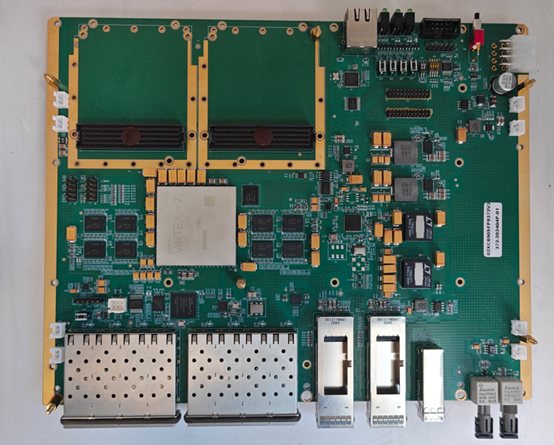

| Board function | Parameter content | |
| Board standard | Custom structure | |
| Main processor | XC7V690T-2FFG1761I | |
| Slave processor |
XC7Z020-2CLG400I | |
| XC7V690Tperipheral | FMC norm | FMC ANSI/VITA 57.1 – 2008 ，ASP-134486-01 In HPC, LA, HA, HB all interfaces and DP0~DP7 8 high-speed interfaces |
| Onboard cache | Two DDR3 groups each have a capacity of 2GB and 64bit @800MHz | |
| Load Flash | BPI Flash 128Mbyte, PC28F00AG18FE | |
| High speed interface 1 | 8 SFP+ @10Gbps, supporting 10 Gigabit Ethernet protocol | |
| High speed interface 2 | 2 channel QSFP+ @4X10Gbps | |
| High speed interface 3 | 1 channel PCIe 3.0X4 | |
| Low speed interface | 1 Gigabit Ethernet, 16 I/O 1.8V IO | |
| XC7Z020 peripheral | Onboard cache | 1 set of DDR3 capacity 1GB, 32bit @800MHz |
| Load Flash | EMMC 8GByte | |
| Low speed interface | 1 gigabit to load Flash Ethernet, 2 RS232, 32 IO@3.3V | |
| Chip interconnection | IO | 24bit IO interconnect @1.8V, support ARM to load V7 |
| Board size | ||
| Board weight | (including heat sink) | |
| Board power supply | +12V@10A | |
| Board power consumption | 80W | |
| Operating temperature | Industrial -20℃~+70℃ |
| Board function | Parameter content |
| Main processor | XC7V690T-2FFG1761I |
| Software version | Vivado 2017.4 |
| Programming language | Verilog |
| Board interface test program | DDR test, SFP fiber test, QSFP fiber test, PCIe I/O mode test ARM test, load test, dual FPGA interconnection test, load test |
| Board interface application program | PCIe V3.0 XDMA test FPGA program, Windows 7, Linux drivers |
| Onboard FMC test procedure | Provide the corresponding test interface program according to the subcard model |
