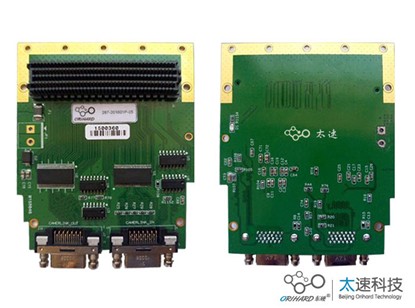

1. Board Overview
This board is an FMC daughter card with 1 Base cameralink input and 1 Base cameralink output developed by our company, and LPC-FMC connector. FMC connector is a high-speed multi-pin interconnect device, which is widely used in board docking equipment, especially in all development boards of Xilinx. The CamerLink daughter card module is a standard board designed specifically for Xilinx development boards, used for applications such as video signal detection and analysis, digital imaging, image analysis and testing.
2. Technical Parameters

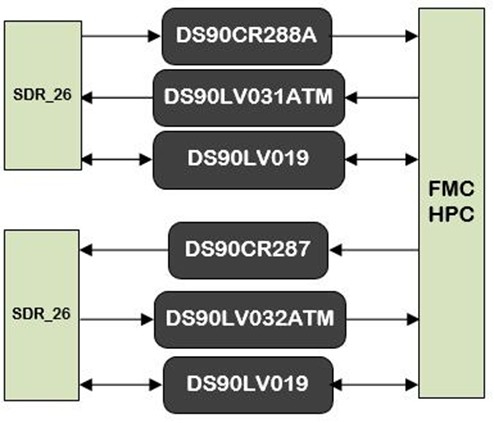

FMC interface, supports 1 Base camera link input and 1 Base camera link output.
CamerLink uses 3M SDR 0.8mm pitch LPC connector to minimize the board space.
The size of the FMC card is: 84mmX69mm.
3.
Physical characteristics
Storage temperature: -20℃～ +70℃
Storage temperature: Commercial grade 0℃～ +55℃, industrial grade -20℃～ +55℃
Working humidity: 10%～80%
4. Software Support
The 2-channel CameraLink Base output FMC daughter card module can be used with the company's own products No. 136, No. 202, etc.
5. Application fields
Digital imaging, image analysis and testing.
