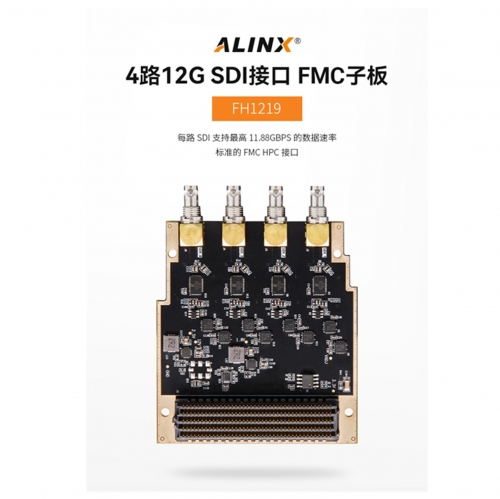

1. Product Overview

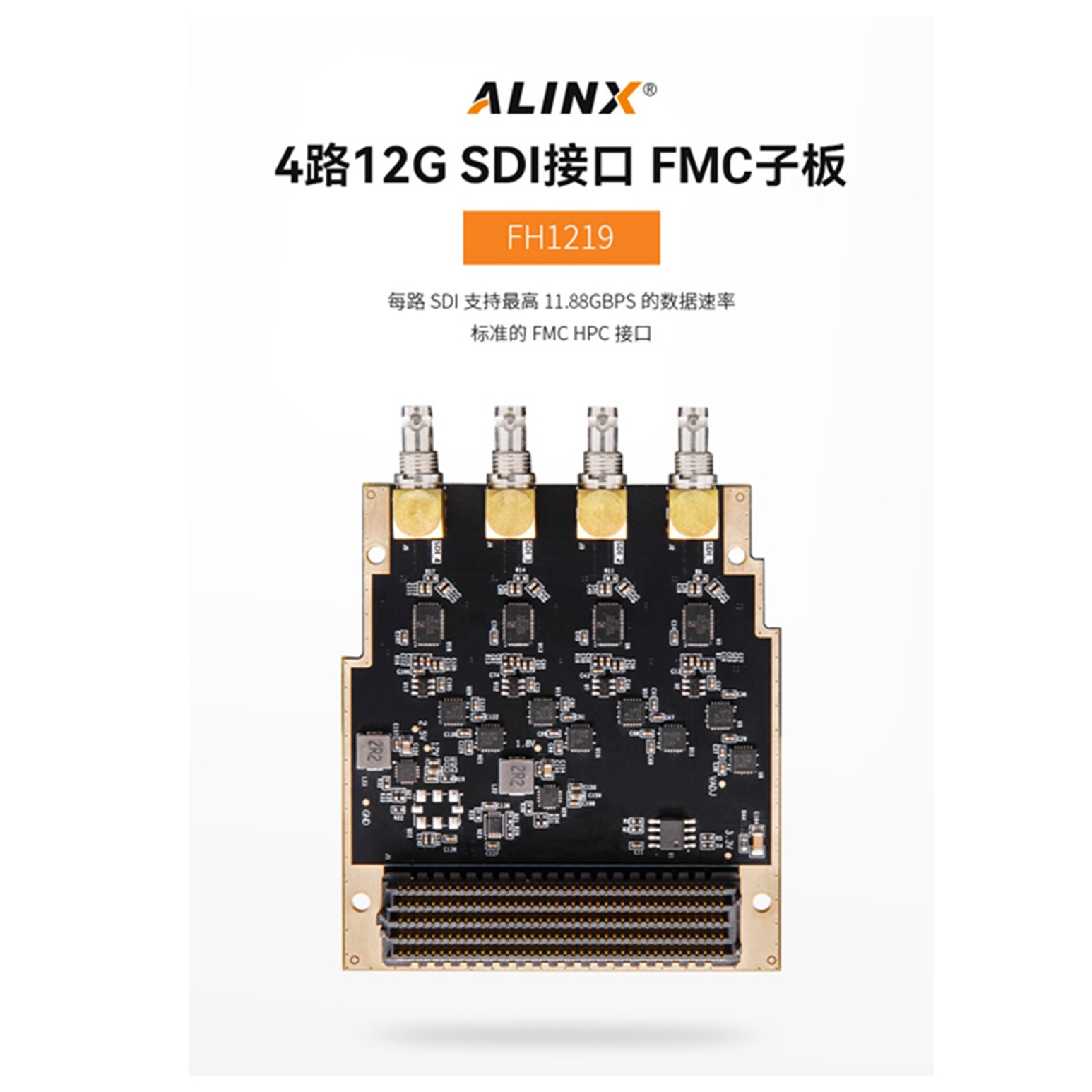

FH1219 has 4 12G SDI interfaces, each of which can be configured as input or output . Each SDI supports a data rate of up to 11.88Gbps. The input and output of the 4-channel SDI video signal are connected to the HDBNC connector (model: HDBNC-JP-GN-RA-BH1) through 75 ohm trace impedance. SEMTECH's bidirectional 12G UHD-SDI chip GS12190 is used to achieve SDI clock recovery, signal drive and signal equalization. The output SDI signal and the recovered SDI signal are connected to the FPGA's GTX/GTH transceiver through the FMC HPC connector (model: ASP-134488-01).
2. Parameter Description

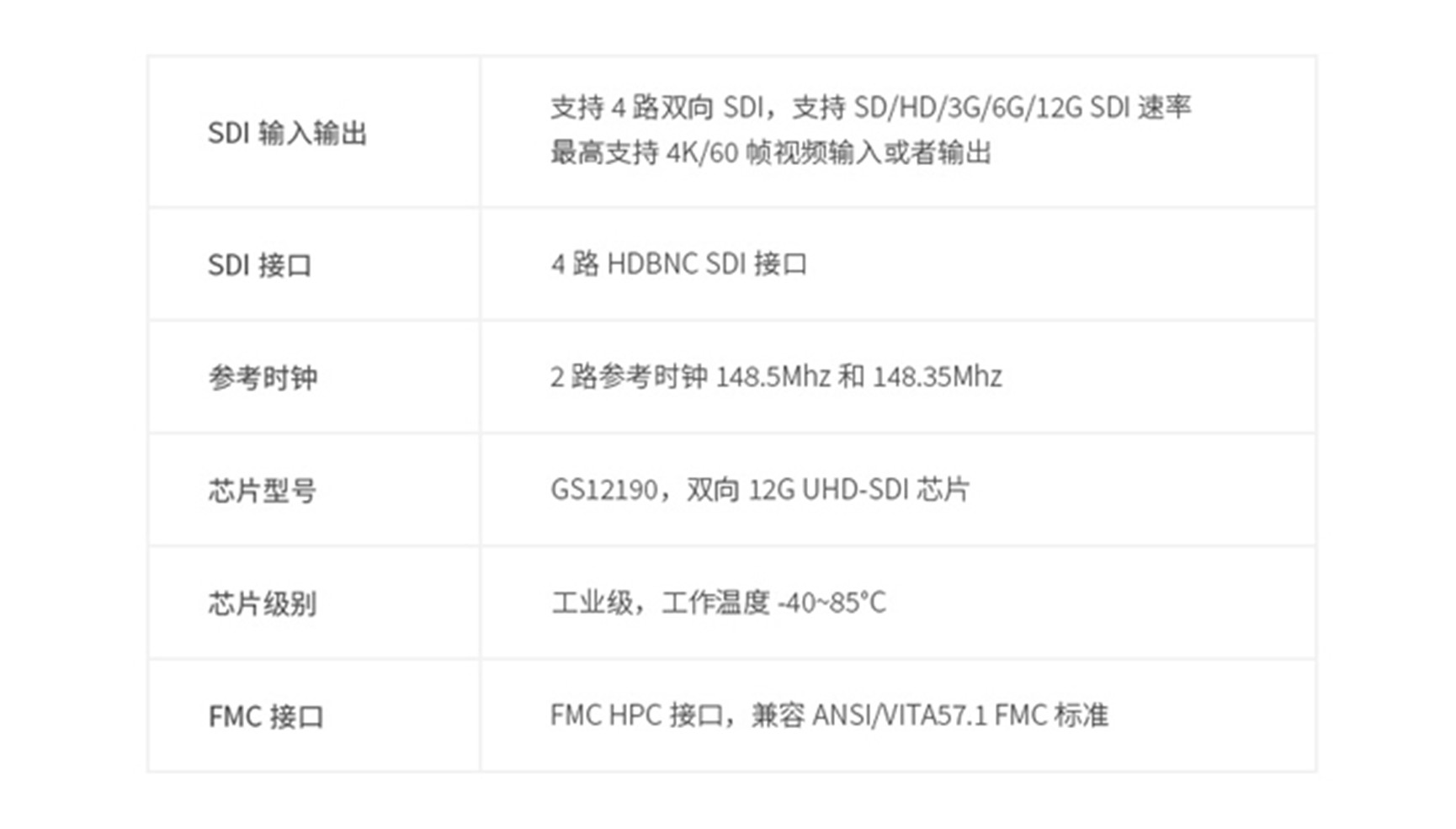

● Support 4-way bidirectional SDI, support SD/HD/3G/6G/12G SDI rate, support up to 4K/60 frames video input or output
● 4-way HDBNC SDI interface Ø FMC HPC interface, compatible with ANSI/VITA57.1 FMC standard
● 2-way reference clock 148.5Mhz and 148.35Mhz
● Industrial grade, working temperature -40~85°C
3. Parameter function

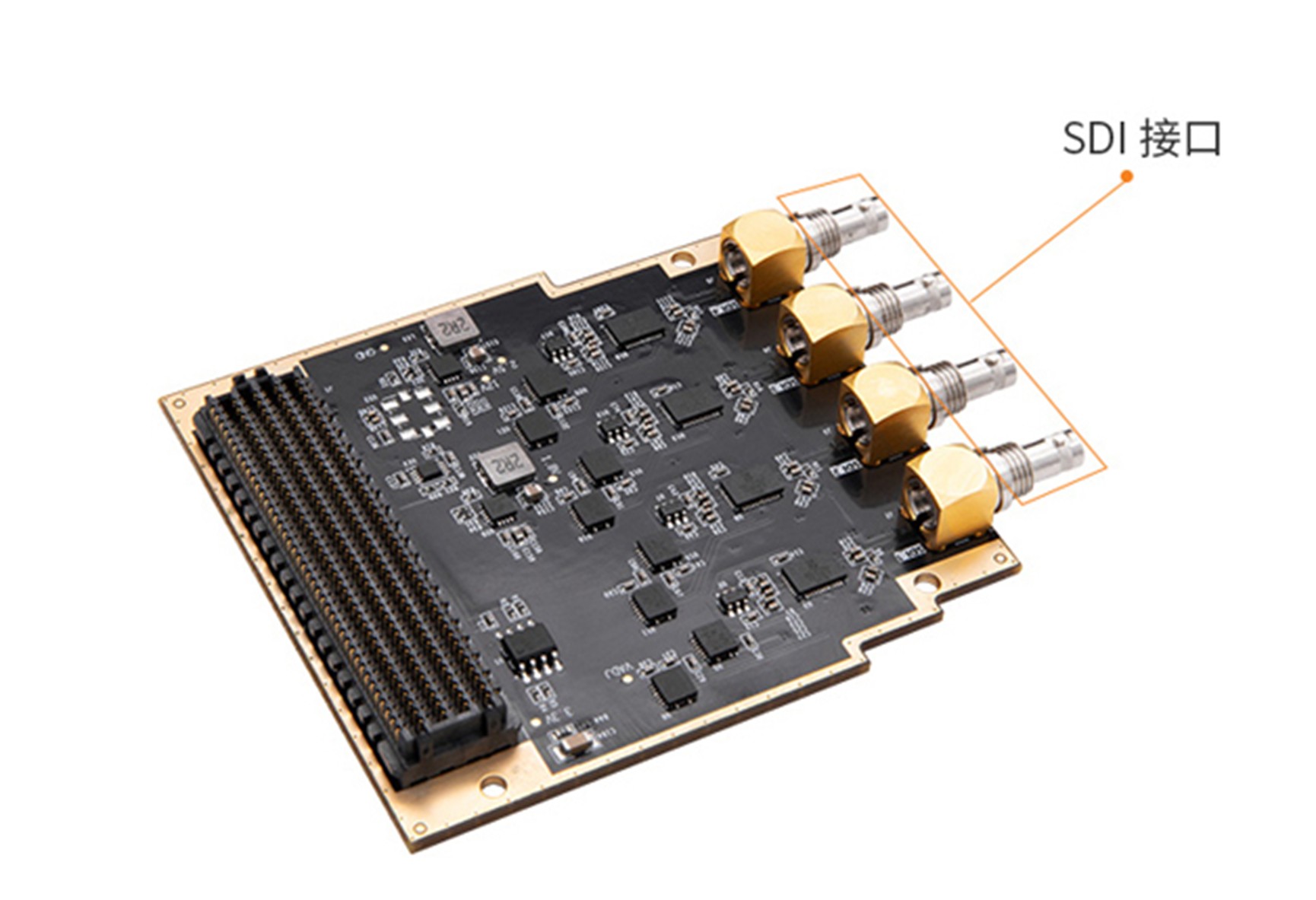

4. Interface display

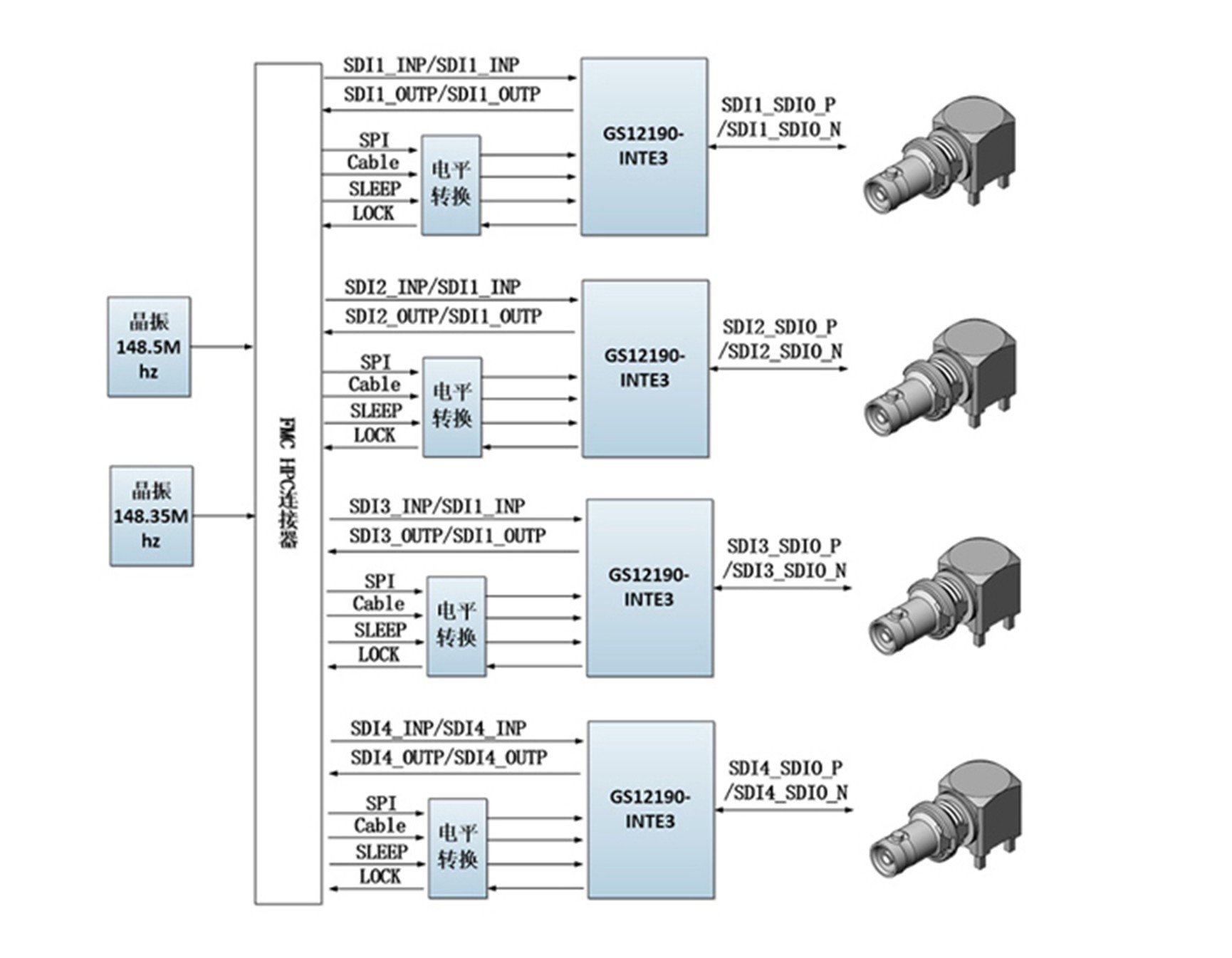

5. Functional structure diagram

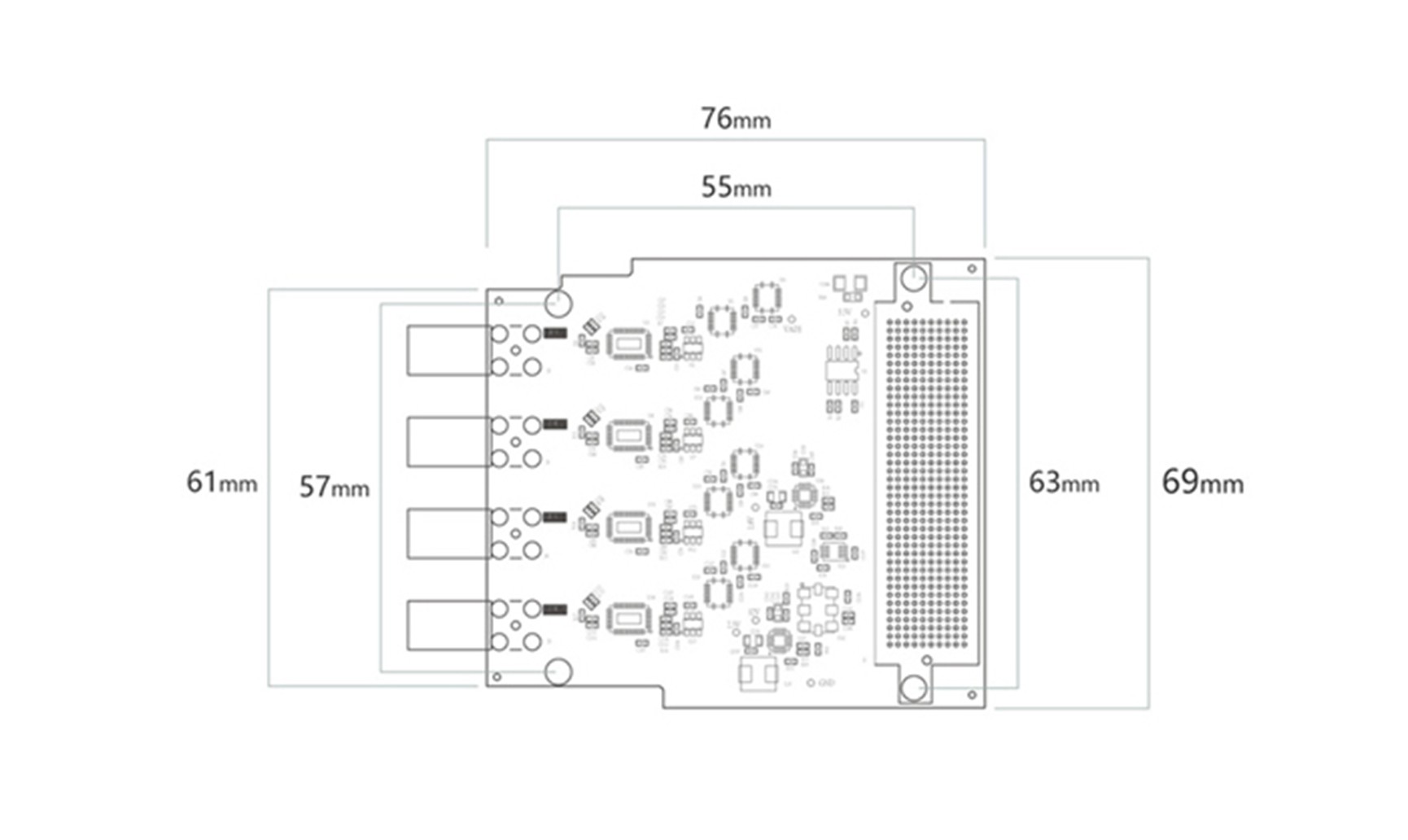

6. Dimensional structure diagram
 |
|
