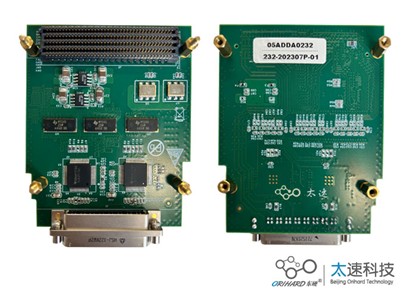

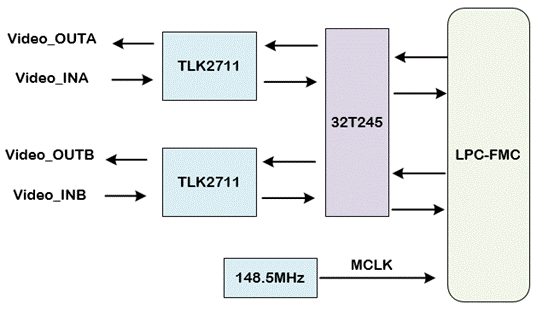

1. Board Overview
TLK2711 is a gigabit transceiver designed for ultra-high-speed bidirectional point-to-point data transmission systems. TLK2711 combined with the clock chip SI5338 supports effective serial interface speeds from 1.6Gbps to 2.5Gbps, providing up to 2Gbps of data bandwidth. The board contains 2 TLK2711s, achieving 2 receive and 2 transmit.
2. Technical Specifications
● Power supply: FMC baseboard 3.3V
● Product power consumption: <1W: specific to the actual project
● Dimensions: Standard FMC structure, 69 x 76.5mm
● External interface: FMC-LPC, video port HDBNC-JP-GN-RA-BH2. Black single unit, coaxial connector (734151002, MMCX from Molex)
● Working temperature: -20℃--70℃
● Storage temperature: -40℃--80℃
● Cooling method: air cooling
● Gigabit transceiver
● Provides high performance for point-to-point baseband data transmission via approximately 50Ω controlled impedance media
● Bidirectional 2 channels
● Serial transmission rate is 1.6Gbps to 2.5Gbps
● Crystal oscillator supports output of 80MHZ-135MHZ
● Add driver to serial output and equalizer to input
● Supports on-chip 8B/10B encoding and decoding, and the chip has a comma check function (for data synchronization)
3. Hardware Expansion Application
Supports the company's board 274 (1.8V), 636 (3.3V), 136 (3.3V) IO expansion applications. |
|
