FMC229-8-channel DAC&2-channel ADC FMC daughter card is an 8-channel 250Msps DA 16bit, 2-channel AD 250Msps 14bit AD board independently developed by the company.

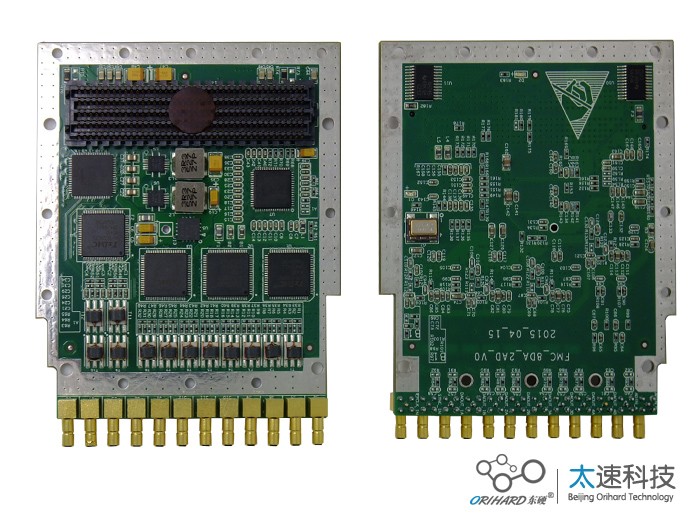

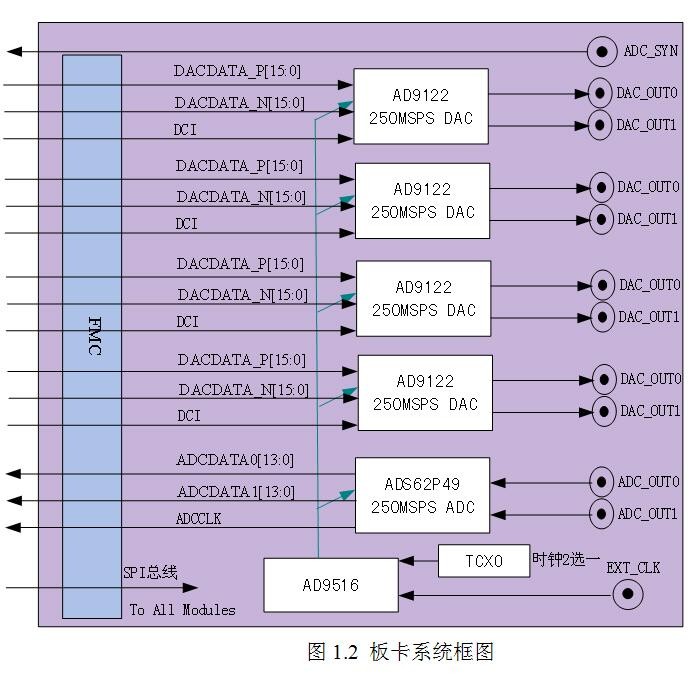

1. Board Overview FMC229-8-channel DAC&2-channel ADC FMC daughter card is an 8-channel 250Msps DA 16bit, 2-channel AD 250Msps 14bit AD board independently developed by the company. The board adopts the standard FMC daughter card architecture, which can be easily connected with other FMC boards at high speed, and can be widely used in high-frequency analog signal acquisition, radar system testing and other occasions. 2. Function Introduction 1. DAC uses ADI's AD9122, 2 channels 250M, 16bit, 4 pieces in total; 2. ADC uses TI's ADS62P49, 2 channels, 250M, 14bit, 1 piece in total; 3. The clock adopts AD9516, which supports on-board clock and external clock; 4. A total of 12 SSMB interfaces and 1 FMC/HPC interface; 5. The external synchronization signal is used to synchronize the ADC data sampling signal, which is optional; 6. External clock enables multiple daughter boards to work under the same clock.
3. Software Support FPGA test example program based on spartan6, Virtex5, and Virtex6 series.
4. Hardware Test Platform Introduction It can be used with the company's own products No. 136, No. 204, Xilinx ML605 development board, VC707 development board, etc.
