1. Overview

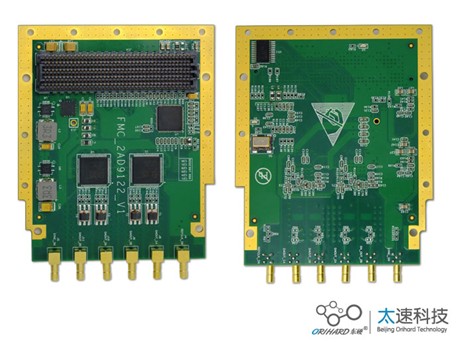

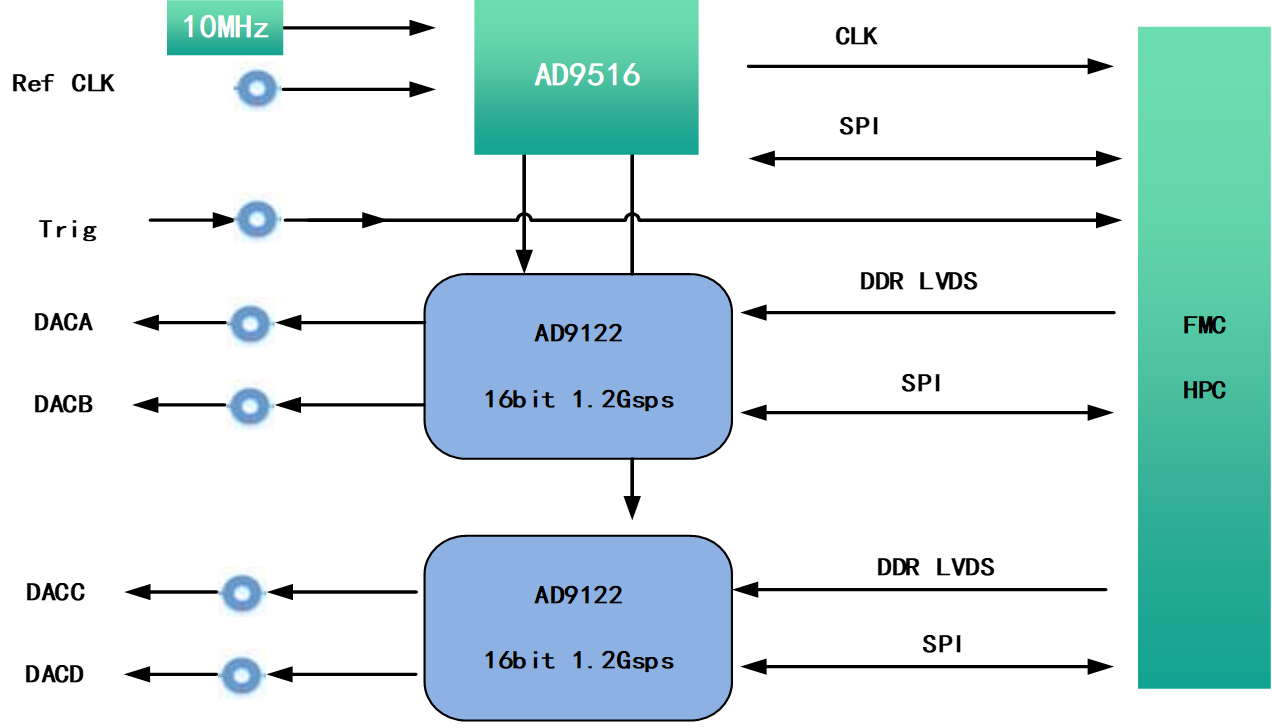

The FMC 228 card implements a wideband, quad-channel, 16 - bit, 1.2 GSPS (600Msps Direct RF Synthesis) DAC function, clocked by an internal clock source (optionally locked to an external reference), or an externally provided sampling clock. A trigger input is also provided for the user to customize the sampling control. The FMC 228 conforms to the FMC standard (ANSI/VITA 57.1) mechanically and electrically. The card has a multi-pin connector, front panel I/O, and can be used in a conduction-cooled environment. The analog signals are AC coupled to the SSMB coaxial connector on the front panel. The FMC 228 allows flexible control of the clock source via a serial communication bus.
2. Performance indicators
| Board Function |
parameter |
content |
| DAC |
Chip Model |
AD9122 |
| Number of routes |
4 -channel DAC , |
| Conversion Rate |
600Msps , interpolation 1.2Gsps |
| Data bits |
1 6bit |
| Digital Interface |
DDR LVDS |
| Analog interface |
AC coupling |
| Analog Output |
± 1 V |
| Output Impedance |
5 0 Ω |
| Simulation indicators |
|
| clock |
PLL chip |
AD 5616-1 |
| Onboard crystal oscillator |
1 0MHz Temperature Compensated Crystal Oscillator VCXO |
| External input clock |
Default 10MHz , 3.3V LVTTL level |
| External trigger |
Number of routes |
1 input |
| |
Level |
3.3V LVTTL level |
| Connector Type |
FMC -HPC |
ASP-134488-01 |
| |
Front Panel |
6-way SSMB |
| Board Standard |
FMC ANSI/VITA 57.1 - 2008 |
| Board size |
6 9X76.5mm |
| Board weight |
(including heat sink) |
| Board power supply |
+ 12V@1A |
| Board power consumption |
8 W |
| Operating temperature |
Industrial -20 ℃ to + 70℃ |
| Supported motherboards |
Xilinx board |
V6, V7, KU, VU, ZYNQ, ZU Development Boards |
| Orihard board |
136, 270, 367, 288, 330, 274, 3, 9 |
| |
|
|
|
3. Software Support
Provides reference test procedures for FMC interface DA output, clock configuration, and external trigger access in ISE or Vivado versions . See the table in the manual for supported FPGA models or boards.
4. Application fields
Very wide bandwidth waveform generation, direct RF conversion, software defined radio (SDR), radar radio detection and acoustic location, ultra-wideband satellite digital receivers, media equipment, aerospace and test instrumentation.
