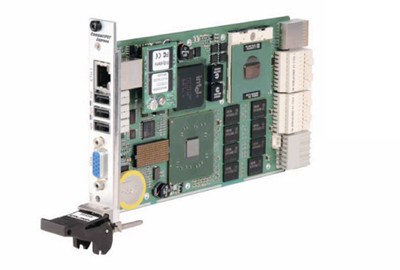

The 3U PXIe master control board based on the AMD V3C18I is a PXIe-compliant high-performance embedded computing module with a modular design and rich interfaces to meet a variety of storage and peripheral connectivity needs.

INQUIRY PDF Format

Description

1. Product Overview
The 3U PXIe master control board based on the AMD V3C18I is a PXIe-compliant high-performance embedded computing module with a modular design and rich interfaces to meet a variety of storage and peripheral connectivity needs. Flexibly adapt to a variety of application scenarios. Designed for applications such as industrial automation, networking equipment, edge computing, and medical devices. It is powered by AMD's advanced processor technology (Ryzen™ Embedded Series) to provide powerful computing power, graphics processing power, and rich I/O interfaces. The following are the indicator parameters about this product:
2. The technical characteristics of the product

	index	parameter
CPU resources	processor	V3C18I（V3000 series）
	CPU TDP range	10-25W
	Number of CPU cores/threads	8 / 16
	CPU reference frequency GHz	1.9 GHz
	CPU overclocking GHz	3.8 GHz
	L2 CPU cache	4 MB
	L3 CPU cache	16 MB
	PCIe Gen4 lanes	13 PCIE 4.0 Lanes;4 PCIE 3.0 Lanes
On-board resources	Flash	32MB SPI FLASH
	Maximum DDR5 throughput (MT/s)	1 group 16Gbyte; 4800 M
	SATA hard drives	2TB
	NVME HDD	PCIe3.0X4； Supports 2TB capacity
	AI module	Compatible with Lingxi KA200 computing card and Haolo-8AI acceleration module;
PXIe connection	XP4	Power, 5 trigger pulses (bidirectional), one trigger control signal input
	XP3	PCIex8
	XP2	LVDS、UART/SPI
	XP1
Front panel connection	USB	1channel USB4.0x2;
	10 Gigabit network	2x10 Gbps Ethernet;
	Gigabit network	1 x 1000M Ethernet
	Other interfaces	1 x RS232
	Video output	HDMIx1
	Operating temperature	-20～+60℃

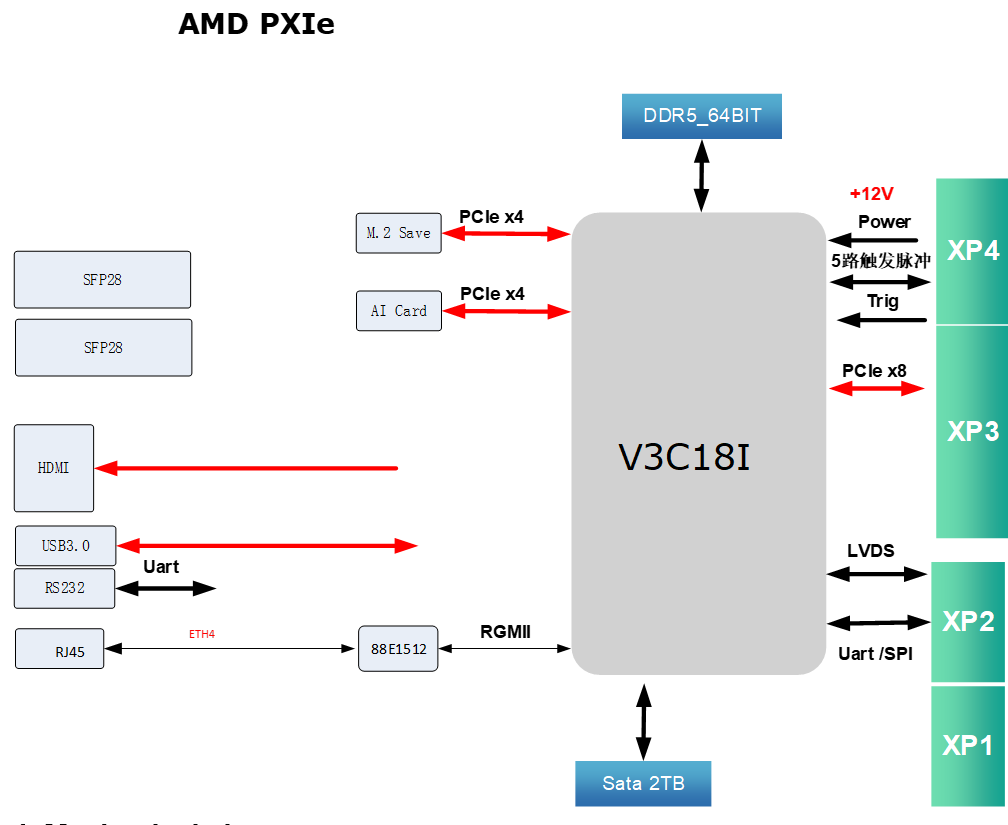

3. System block diagram

4. Mechanical size:
3U PXIe main control board, please refer to the mechanical dimensions for detailed dimensions.
5. Heat dissipation method:
The whole board is air-cooled and dissipated.
6. Environmental performance indicators
6. 1 Operating temperature
Operating temperature: -20~+60°C (industrial grade/standard configuration). When used at high temperatures, the board needs to be dissipated well.
6. 2 Storage temperature
The storage temperature is -20~+85°C, and the product will not cause damage to function and appearance after storage within this temperature range. If the storage temperature required by the user is higher than this index, the whole plate test is used for screening.
6. 3 Ambient humidity
Relative humidity of board operation: 5%-95%, no condensation.
7. Power supply and power consumption
The motherboard is powered by a standard PXIE chassis and works when the DC voltage varies in the +5%/-3% range.
Appendix:
AMD Ryzen™ Embedded V3000 Series Processors at a Glance

Model number	TDP range	Number of CPU cores/threads	CPU base frequency Ghz	CPU overclocking GHz@80C (high) *	l2cpcache
V3C48	35-54W	8/16	3.3GHz	3.8GHz	4MB
V3C44	35-54W	4/8	3.5GHz	3.8GHz	2MB
V3C18I	10-25W	8/16	1.9GHz	3.8GHz	4MB
V3C16	10-25W	6/12	2.0GHz	3.8GHz	3MB
V3C14	10-25W	4/8	2.3GHz	3.8GHz	2MB

Model number	L3cpcache	Maximum DDR5 throughput (MT/s, up to)	PCIe Gen4 channel	Ethernet port	Junction temperature
V3C48	16MB	4,800	20L	2×10Gb	0-105C
V3C44	8MB	4,800	20L	2×10Gb	0-105C
V3C18I	16MB	4,800	20L	2×10Gb	-40-105C
V3C16	16MB	4,800	20L	2×10Gb	0-105C
V3C14	8MB	4,800	20L	2×10Gb	0-105C

More important benefits:
1. Support Linux OS, with upstream Ubuntu and Yocto drivers
2.Planned product availability is up to 10 years, providing customers with a roadmap for long lifecycle support
