FMC127-4-channel 12bit 125Msps DC coupled AD FMC daughter card
Item No.: 127

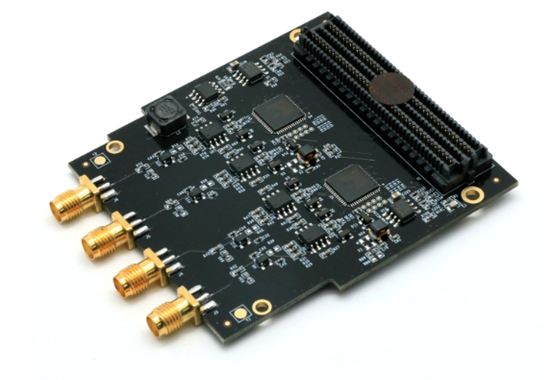

The FMC high-speed AD module FL9627 is a 4-channel 125MSPS, 12-bit analog signal to digital signal module. The AD conversion of the FMC module uses 2 AD9627 chips from ADI.

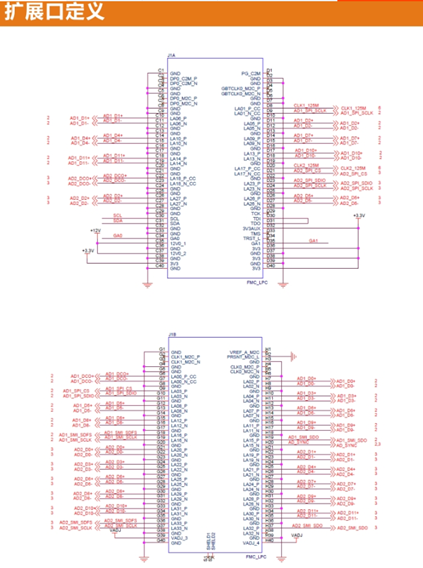

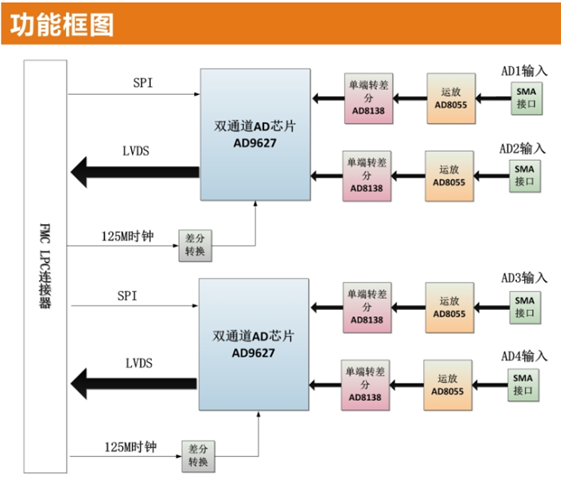

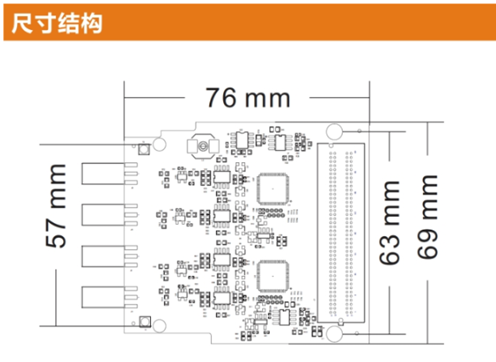

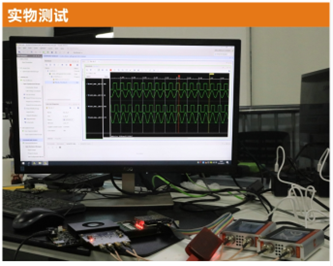

1. Board Overview: The FMC high-speed AD module FL9627 is a 4-channel 125MSPS, 12-bit analog signal to digital signal module. The AD conversion of the FMC module uses 2 AD9627 chips from ADI. Each AD9627 chip supports 2-channel AD input conversion, so 2 AD9627 chips support 4-channel AD input conversion in total. The voltage range of the analog signal input is -5V~+5V, and the interface is an SMA socket. The module has a standard LPC FMC interface for connecting to the FPGA development board. The FMC connector model is: ASP_134604_01 2. Module parameter description Ø AD conversion chip: 2 pieces of AD9627 Ø AD conversion channel: 4 channels; Ø AD sampling rate: 125MSPS; Ø AD sampling data bit number: 12 bits; Ø Digital interface level standard: +1.8V LVDS level Ø AD analog signal input range: -5V~+5V; Ø Analog signal input interface: SMA interface; Ø Configuration interface: SPI interface; Ø Working temperature: -40°~85°; 3. Module structure diagram 4. Module Function Description FL9627 module block diagram 5. Expansion port definition 6. Physical Test
